Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

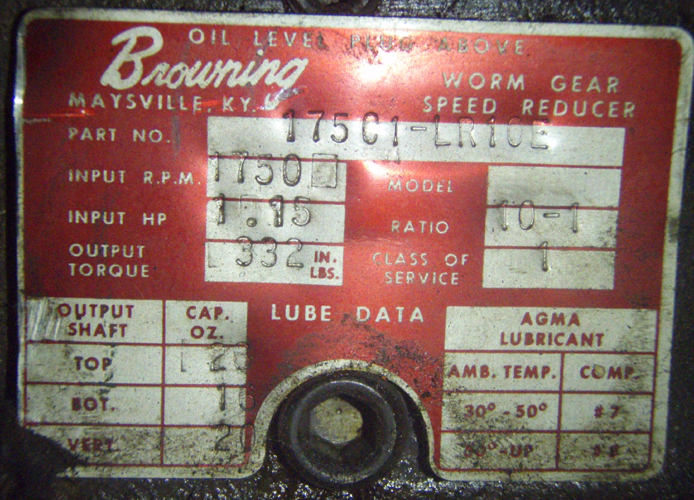

N A M E P L A T E       D A T A
Manufacturer:       BROWNING Maysville, KY
      WORM GEAR SPEED REDUCER 		Our ID No.      006183
Model No:      175C1-LR10E Ratio:      10
S/N       Center Distance      1.75
IP Speed      1750 HP rating      1.15
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      332 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  0.750
Weight      34 Lbs Approx. Assembly      WO DOUBLE OUTPUT
Notes:


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

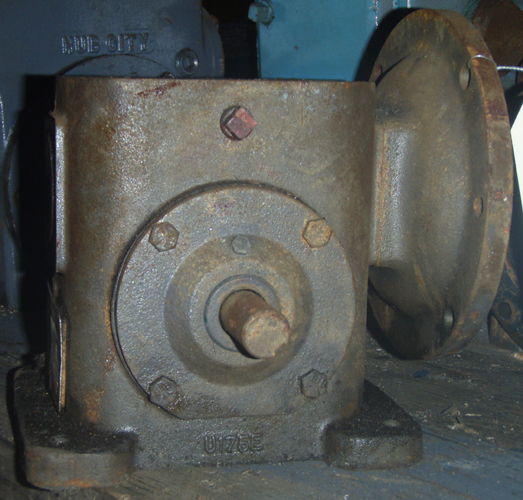

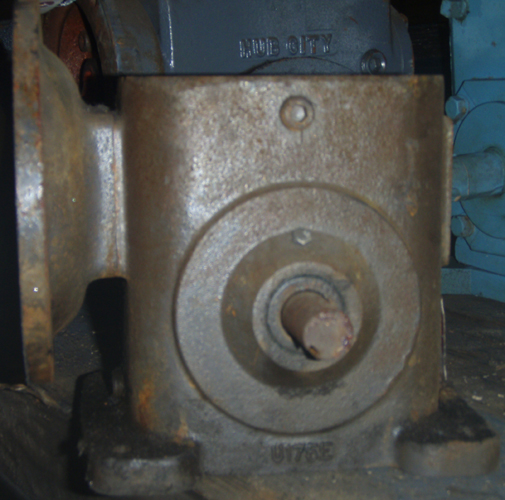

Click on images for larger view.
