- Speed Reducer Data Sheet -

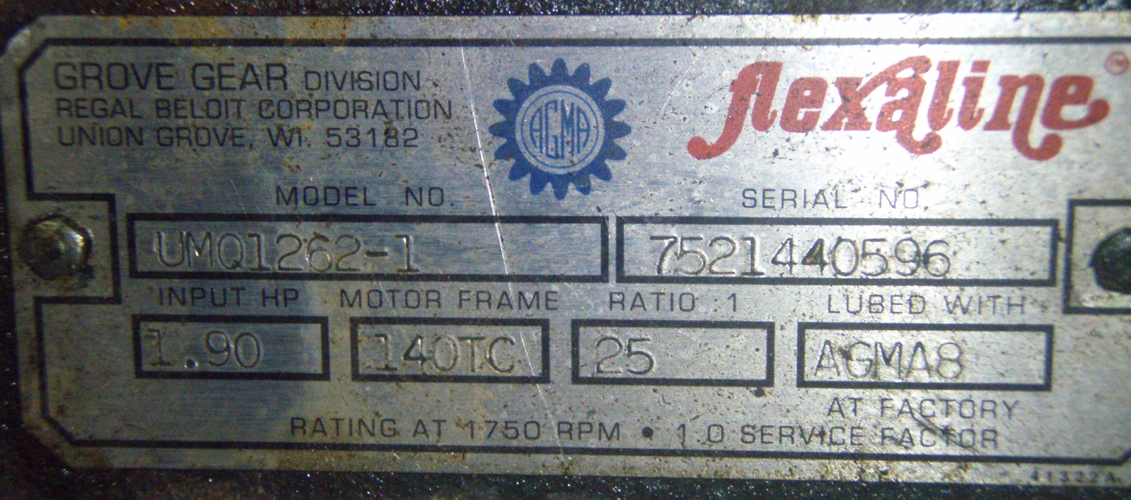

N A M E P L A T E       D A T A
Manufacturer:      GROVE GEAR     Flexaline SERIES Our ID No.      006187
Model No:      UMQ1262-1, TMQ1262-1 Ratio:      25
S/N      7521440596 Center Distance      2.625
IP Speed      1750 HP rating      1.90
OP Speed:      72 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      1,452 Lb-Inches Shaft Diameters High Speed:  140TC (56C with bushing)
Low Speed:  1.250
Weight      74 Lbs Approx. Assembly      Double Output
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
25:1

72 RPM
1.963 HP
1170 RPM
48 RPM
1.582 HP
870 RPM
36 RPM
1.316 HP
Notes:
   Unused Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

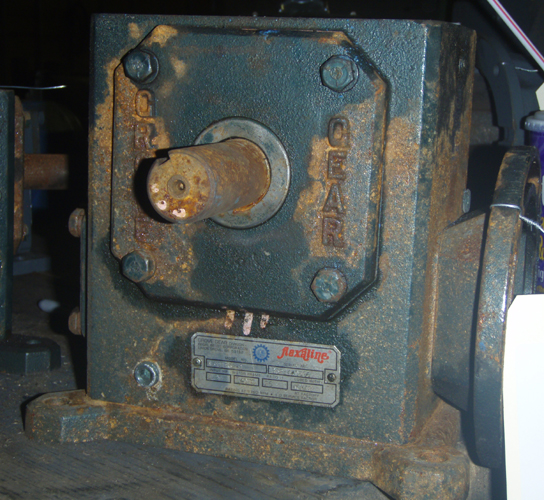

Click on images for larger view.
