Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

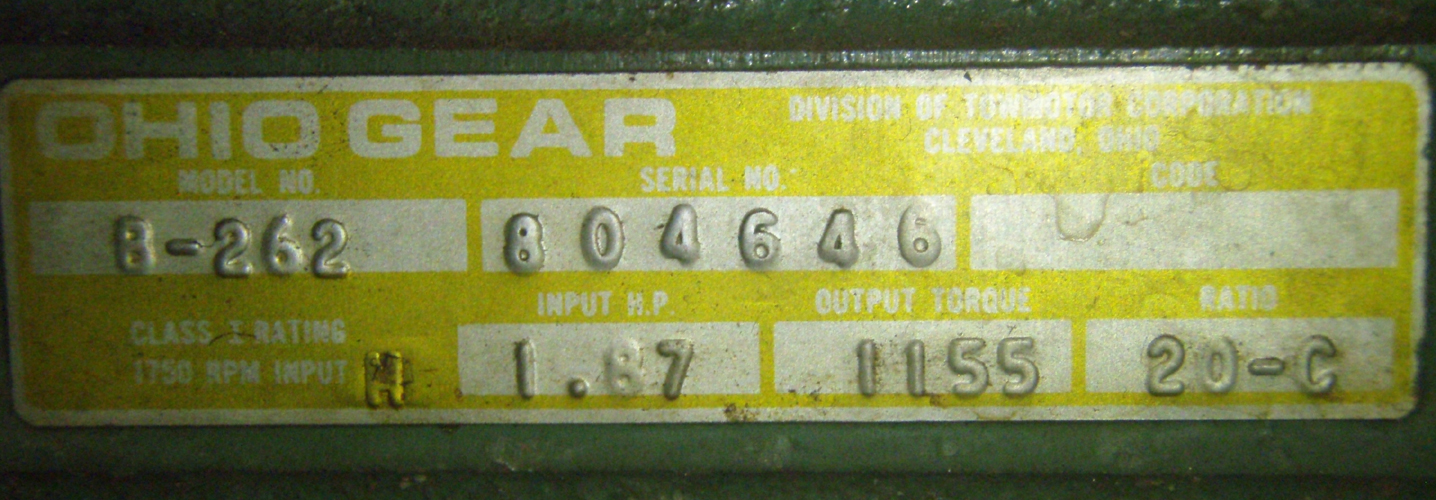

N A M E P L A T E       D A T A
Manufacturer:      OHIO GEAR Our ID No.      006190
Model No:      B-262 Ratio:      20-C
S/N      804646 Center Distance      2.625
IP Speed      1750 HP rating      1.87
OP Speed:      87.5 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      1,155 Lb-Inches Shaft Diameters High Speed:  0.750
Low Speed:  1.125
Weight      50 Lbs Approx. Assembly       WO-LH
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
20

87.5 RPM
1.87 HP
1170 RPM
57.5 RPM
1.51 HP
870 RPM
43.5 RPM
1.28 HP
580 RPM
RPM
HP
Notes:
   Unused Surplus
