Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

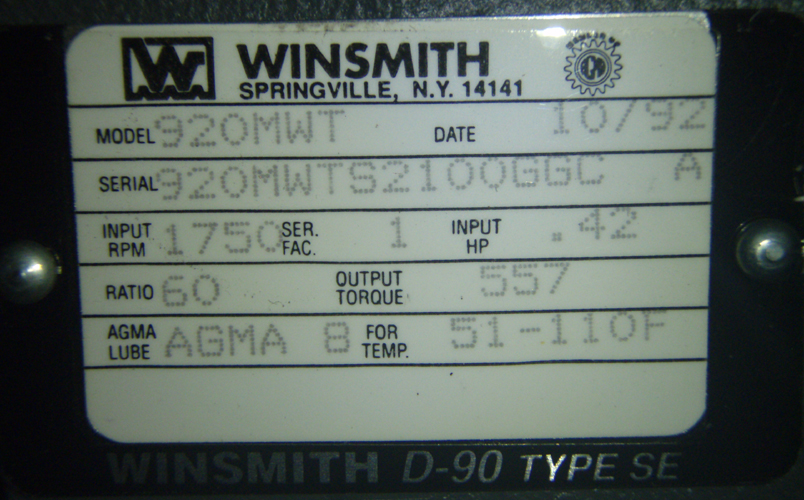

N A M E P L A T E       D A T A
Manufacturer:      WINSMITH WORM GEAR REDUCER Our ID No.      006191
Model:      920MWT Ratio:      60
S/N      920MWTS2100GGC A Center Distance      2.00
IP Speed      1750 HP rating       0.42
OP Speed:      29 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N

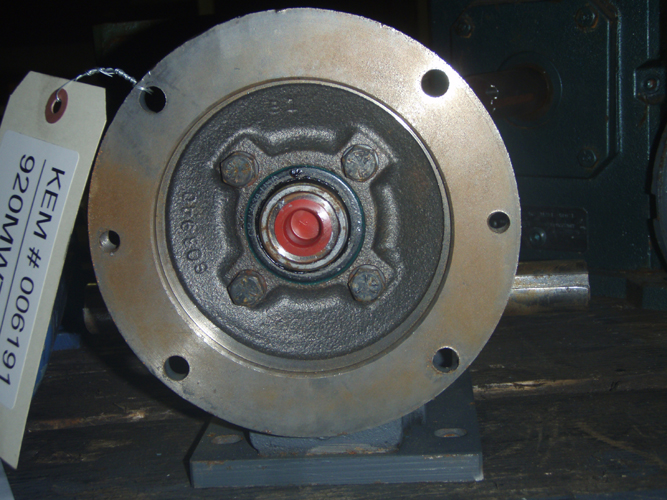

Torque Rating       557 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.000

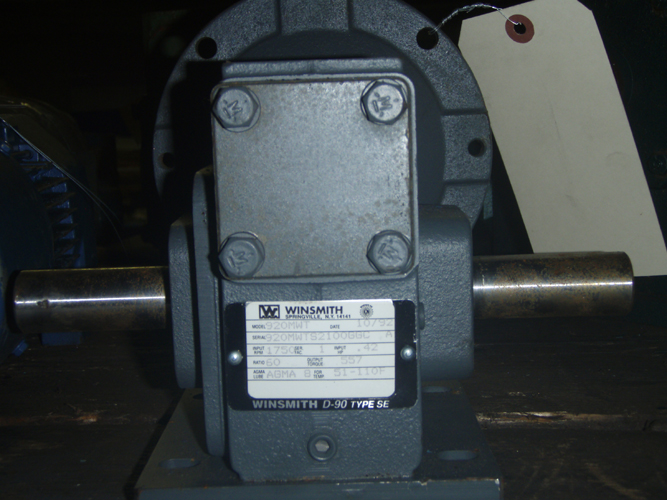

Weight       30 Lbs Approx. Assembly       LR Double output
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
60:1

29 RPM
0.42 HP
1170 RPM
19 RPM
0.32 HP
Notes:
    Unused surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci


Click on images for larger view.
