Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

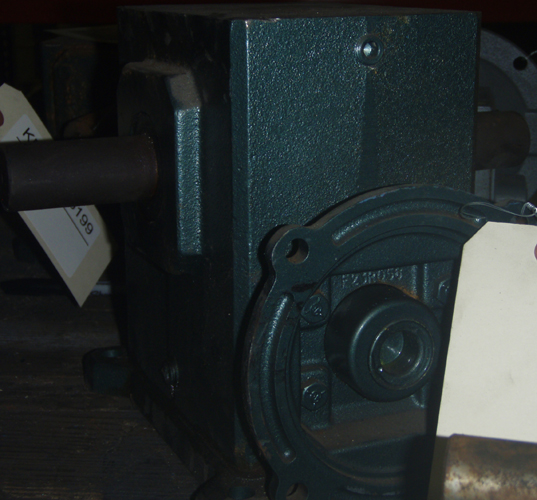

Manufacturer:      GROVE GEAR     Flexaline SERIES Our ID No.      006192
Model No:      UMQ226-1, TMQ226-1, BMQ226-1 Ratio:      25
S/N      80042640499 Center Distance      2.625
IP Speed      1750 HP rating      1.945
OP Speed:      70 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      1,477 Lb-Inches Shaft Diameters High Speed:  140TC
Low Speed:  1.250
Weight      75 Lbs Approx. Assembly      Double extended Low Speed
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
25 :1

70 RPM
1.945 HP
1170 RPM
46.8 RPM
1.561 HP
870 RPM
34.8 RPM
1.286 HP
Notes:
   Unused Surplus
