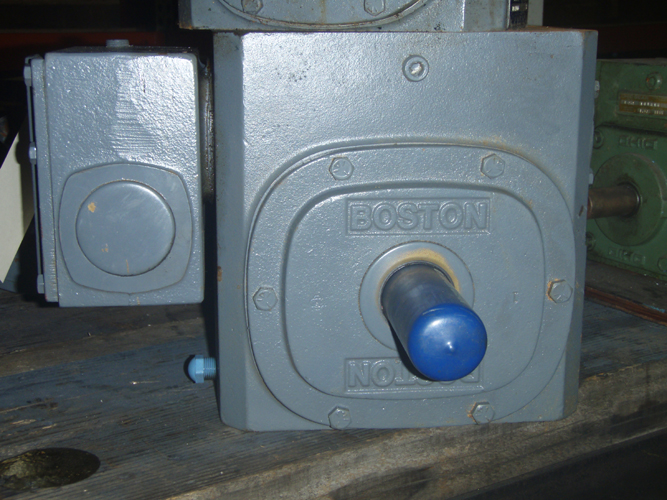

- Speed Reducer Data Sheet -

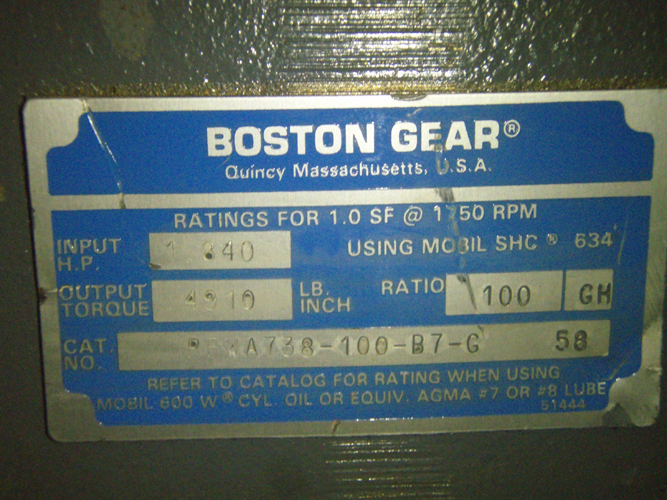

N A M E P L A T E       D A T A
Manufacturer:      BOSTON GEAR Our ID No.      006203
Model:      RFWA738-100-B7-G Ratio:      100
IP Speed      1750 HP rating      1.84
OP Speed:      17.5 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       4,910 Lb-Inches Shaft Diameters High Speed:  0.625 / 56C
Low Speed:  1.625
Weight      4,910 Lbs Approx. Center Distance
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
100

17.5 RPM
1.84 HP
1170 RPM
RPM
HP
870 RPM
RPM
HP
Notes:
    UNUSED SURPLUS
