Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

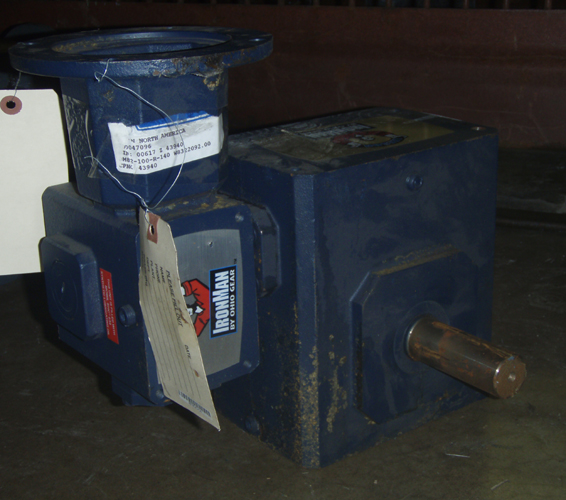

N A M E P L A T E       D A T A
Manufacturer:      OHIO GEAR     IRONMAN Our ID No.      006210
Model No:      DM832-100-140-R1 Ratio:      100
CATALOG NUMBER      W8322092.00 Center Distance      P=1.54
     S=3.25
IP Speed      1750 HP rating      1.61
OP Speed:      17.5 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      4,114 Lb-Inches Shaft Diameters High Speed:  140TC (56C with a bushing)
Low Speed:  1.375
Weight      120 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
100

17.5 RPM
1.61 HP
1170 RPM
11.7 RPM
1.25 HP
870 RPM
8.7 RPM
0.98 HP
580 RPM
RPM
HP
Notes:
   Unused surplus
