Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

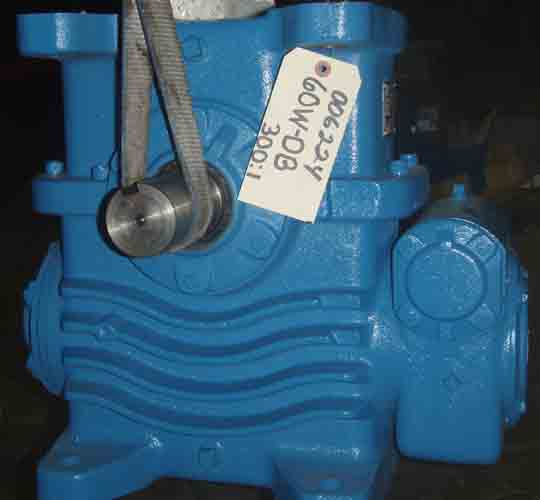

Manufacturer:      MORSE     PowerGear Our ID No.       006224
Model:       60W-DB Ratio:       300
S/N       G91MR0571 Center Distance       6.00 / 3.00
IP Speed       1750 HP rating       3.16
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       22,453 Lb-Inches Shaft Diameters High Speed:   1.000
Low Speed:   2.500
Weight       450 Lbs Approx. Assembly       ASSY R-LR
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
300

5.83 RPM
3.16 HP
1170 RPM
3.83 RPM
2.23 HP
870 RPM
2.90 RPM
1.77 HP
580 RPM
1.93 RPM
1.25 HP
Notes:
    NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci


Click on images for larger view.
