- Speed Reducer Data Sheet -
HOME

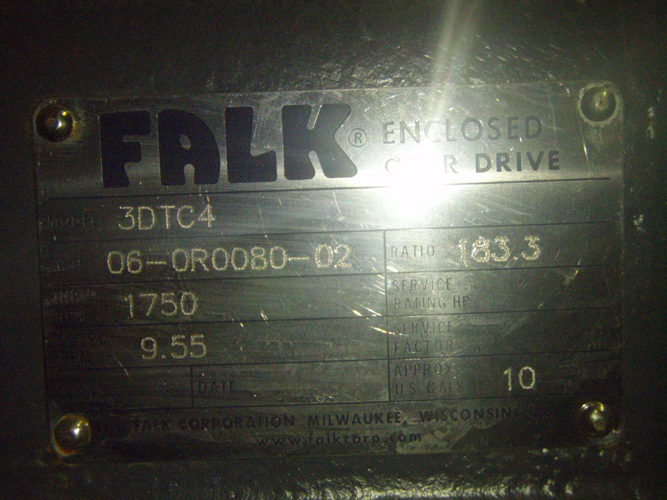

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      006225
Model:      3DTC4 Ratio:      183.3
MO# or S/N      06-0R0080-01 Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       20,000 Lb-Inches Shaft Diameters High Speed:  1.750
Low Speed:  2.937
Weight      900 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
183.3

9.55 RPM
3.02 HP
1430 RPM
RPM
HP
1170 RPM
6.27 RPM
1.99 HP
870 RPM
RPM
HP
720 RPM
RPM
HP
580 RPM
RPM
HP
Notes:
Condition:


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

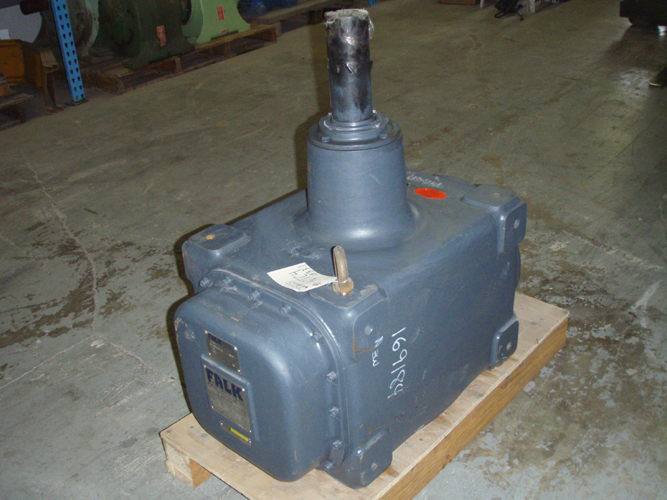

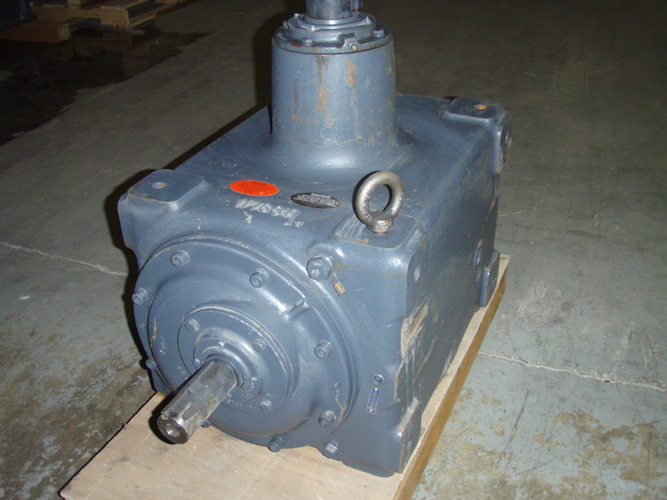

Click on images for larger view.
