Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

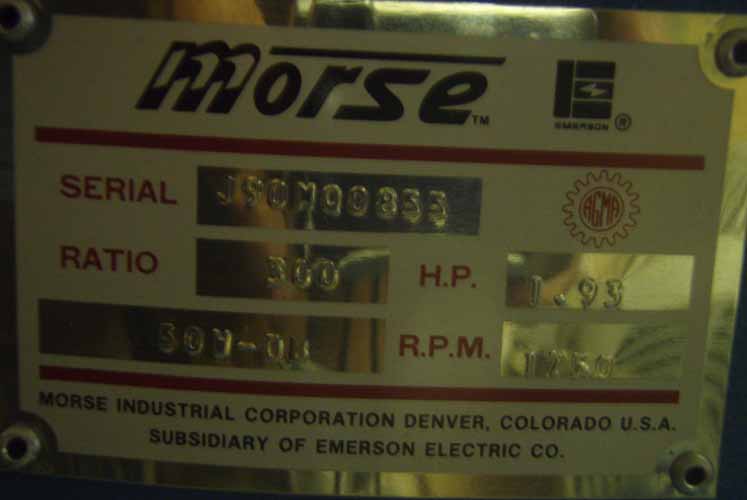

N A M E P L A T E       D A T A
Manufacturer:      MORSE     PowerGear Our ID No.       006227
Model:       50W-DB Ratio:       300
S/N       J90NQ0855 Center Distance       5.00 / 2.50
IP Speed       1750 HP rating       1.93
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       13,507 Lb-Inches Shaft Diameters High Speed:   0.750
Low Speed:   2.375
Weight       300 Lbs Approx. Assembly       ASSY l-LR
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
300:1

5.83 RPM
1.93 HP
1170 RPM
3.83 RPM
1.36 HP
870 RPM
2.90 RPM
1.07 HP
580 RPM
1.93 RPM
0.76 HP
Notes:
    NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

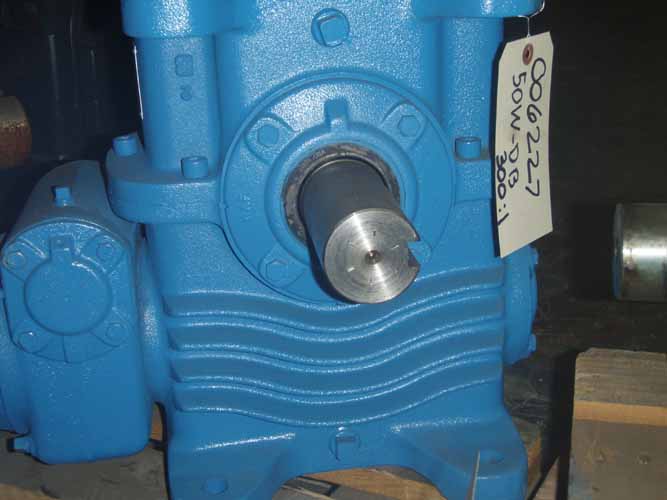

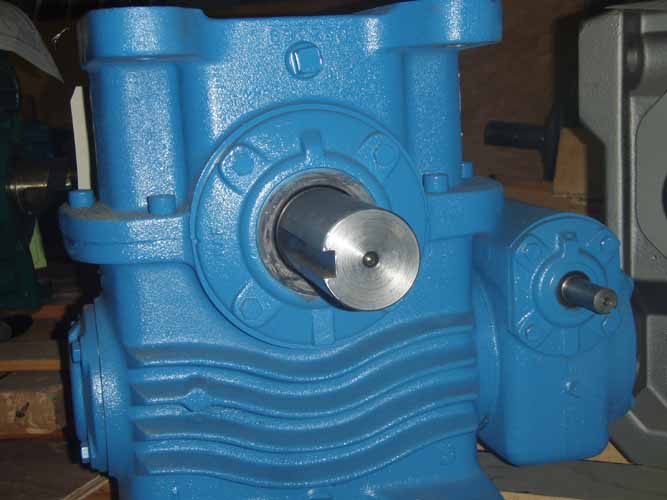

Click on images for larger view.
