Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet - |
|||||
---|---|---|---|---|---|
|
|||||
Manufacturer: | MORSE PowerGear | Our ID No. | 006230 | ||
Model: | 60W-DB | Ratio: | 300 | ||
S/N | J90MRO589 | Center Distance | 6.00 / 3.00 | ||
IP Speed | 1750 | HP rating | 3.16 | ||
OP Speed: | SF / SC | 1.0 - SF | |||
|
|||||
Torque Rating | 22,453 Lb-Inches | Shaft Diameters |
High Speed:
1.000
Low Speed: 2.500 |
||
Weight | 450 Lbs Approx. | Assembly | ASSY L-LR |
H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
HP Ratings |
---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Notes: |
|

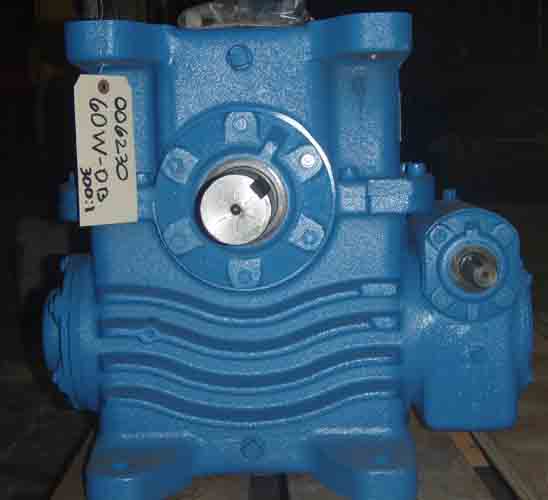

Click on images for larger view. |
