Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

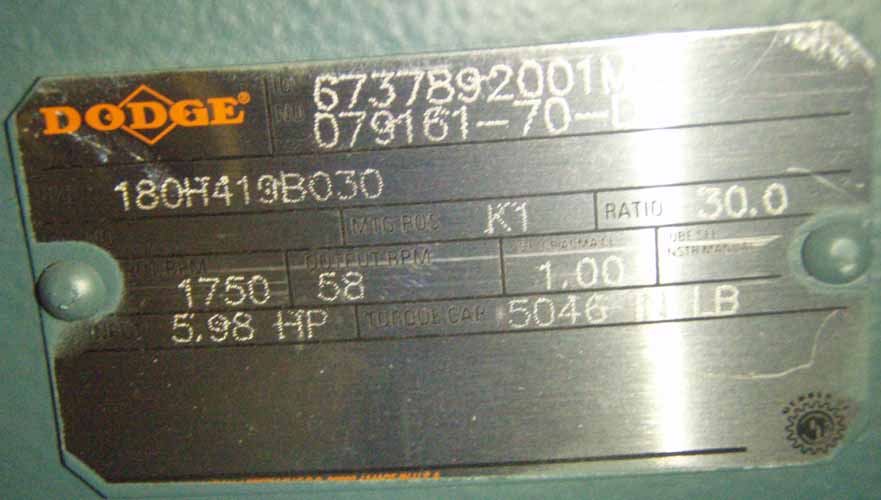

N A M E P L A T E       D A T A
Manufacturer:      DODGE TIGEAR
     MASTER XL, MASTER PT
     RELIANCE
     Speed Reducer 		Our ID No.      006246
Model No:      180H419B030
     180H419B 		Ratio:      30
S/N      6737892001MG
     079161-70-D      M94771 		Center Distance      4.19
IP Speed      1750 HP rating      5.98
OP Speed:      58 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      5,046 Lb-Inches Shaft Diameters High Speed:  180TC
Low Speed:  1.875
Weight      210 Lbs Approx. Assembly      K-1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
30 :1

58 RPM
5.98 HP
1170 RPM
38 RPM
4.31 HP
870 RPM
28 RPM
3.44 HP
Notes:
   UNUSED SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

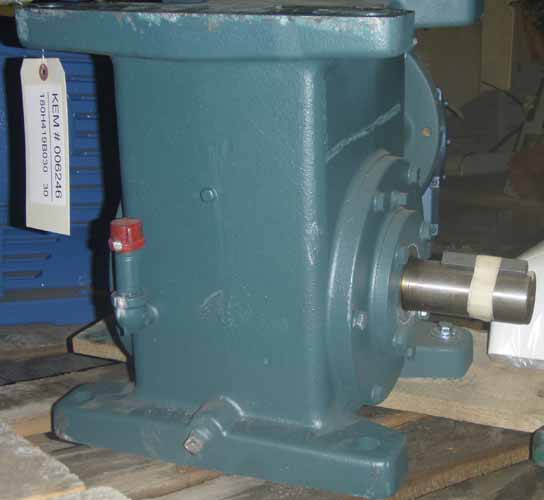

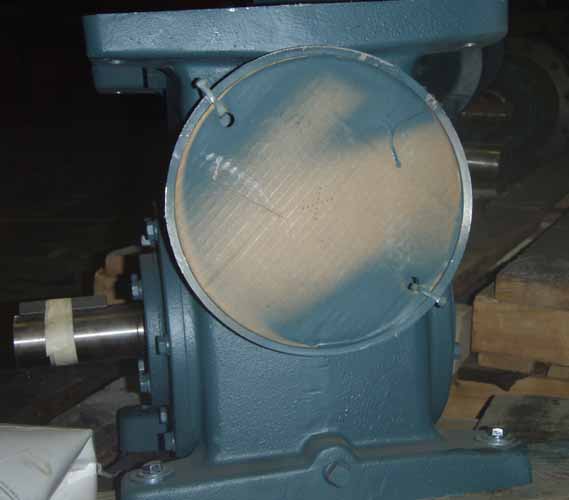

Click on images for larger view.
