Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

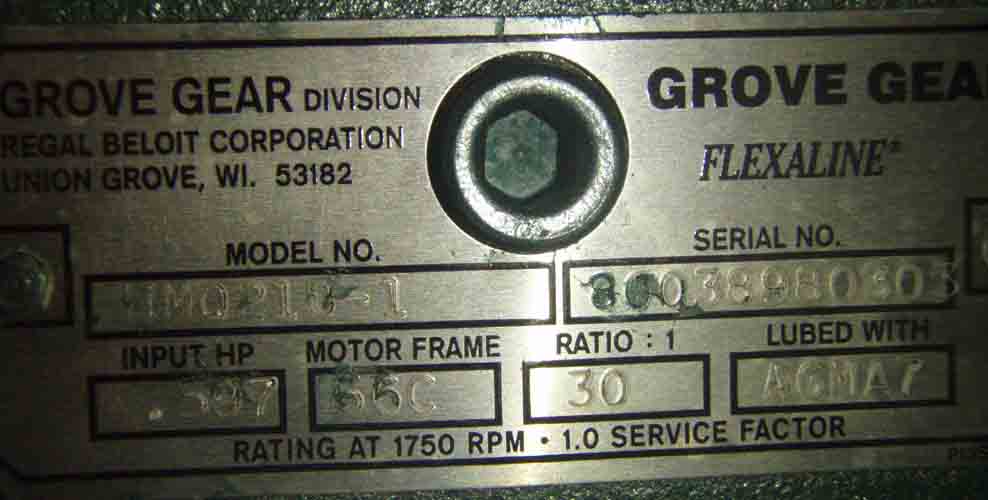

N A M E P L A T E       D A T A
Manufacturer:      GROVE GEAR     Flexaline SERIES Our ID No.      006254
Model No:      HMQ218-1 Ratio:      30
S/N      80038980303 Center Distance      1.75
IP Speed      1750 HP rating      0.59
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      487 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.000 HOLLOW LOW SPEED SHAFT
Weight      30 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
30 :1

58 RPM
0.597 HP
1170 RPM
39 RPM
0.475 HP
870 RPM
29 RPM
0.390 HP
Notes:
   NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

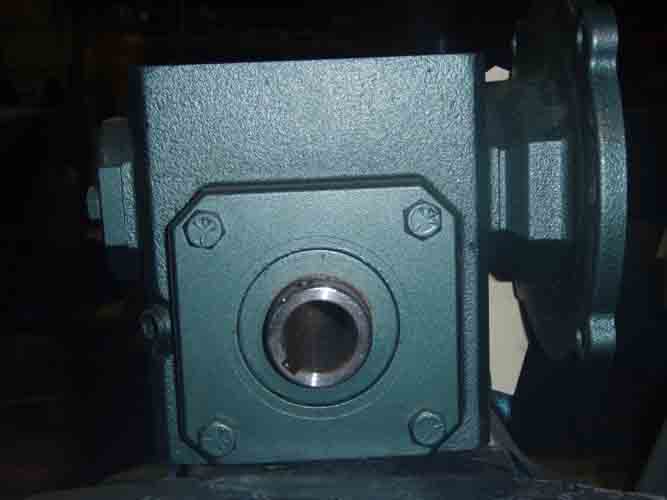

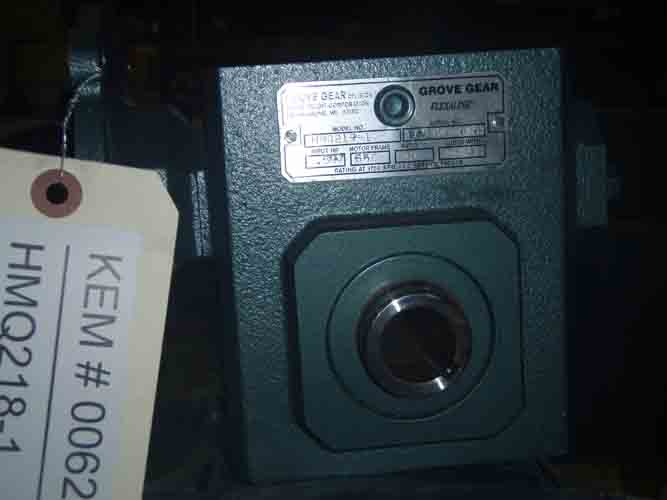

Click on images for larger view.
