Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME

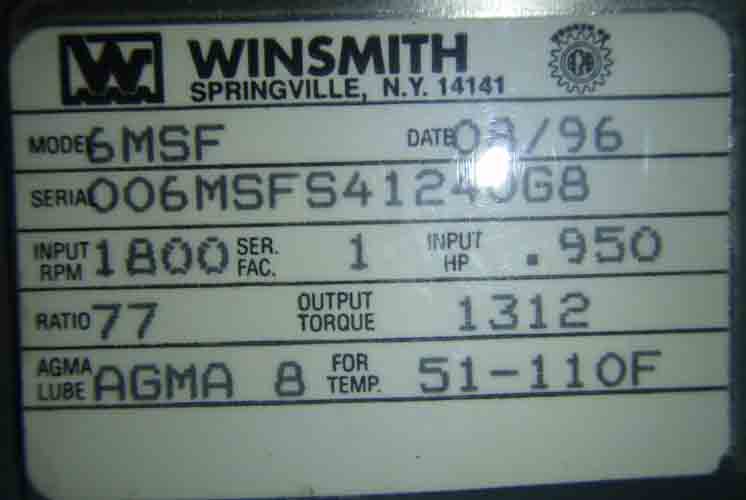

N A M E P L A T E       D A T A
Manufacturer:      Winsmith Our ID No.      006255
Model:      6MSF Ratio:      77
MO# or S/N      006MSFS41240G8 Alt. S/N
IP Speed      1800 HP rating      .950 Cat. Rating
OP Speed:       SF / SC      1
Date      08/96 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      1312 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.500 Hollow Shaft
Weight       90 Lbs Approx. Assembly       DL
Notes:
Condition:
Unused Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

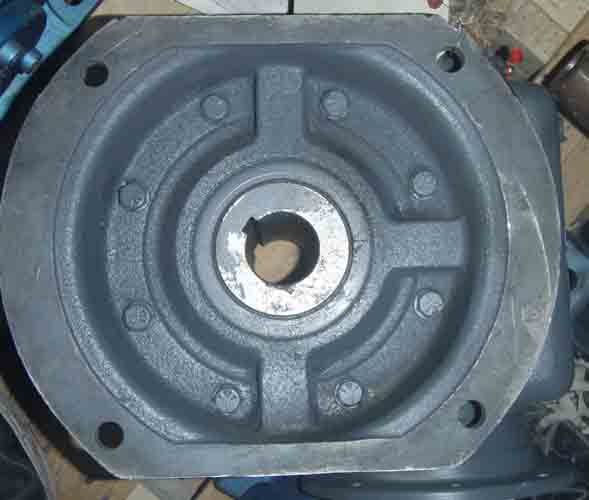

Click on images for larger view.
