Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

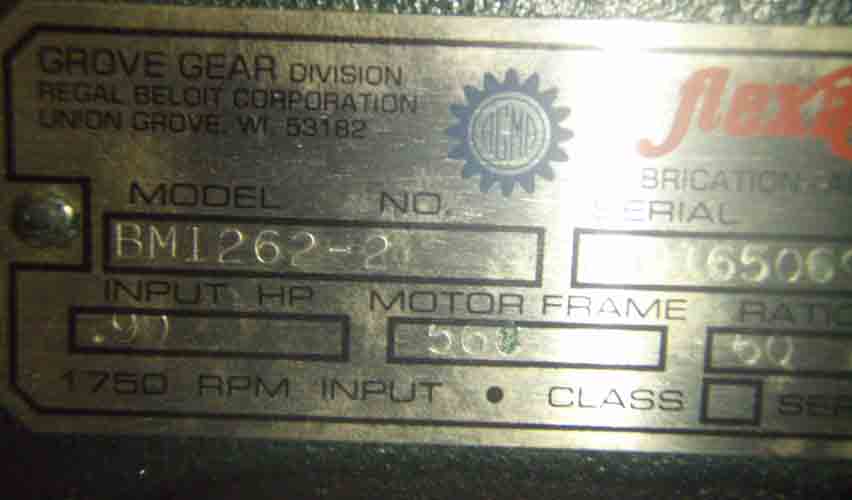

N A M E P L A T E       D A T A
Manufacturer:      GROVE GEAR     Flexaline SERIES Our ID No.      006258
Model No:      BM1262-2 Ratio:      60
S/N      7501650690 Center Distance      2.62
IP Speed      1750 HP rating      0.90
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      1,330 Lb-Inches Shaft Diameters High Speed:  0.750 / 56c
Low Speed:  1.250
Weight      70 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
60 :1

30 RPM
0.90 HP
1170 RPM
20 RPM
0.74 HP
870 RPM
15 RPM
0.62 HP
Notes:
   NEW SURPLUS
