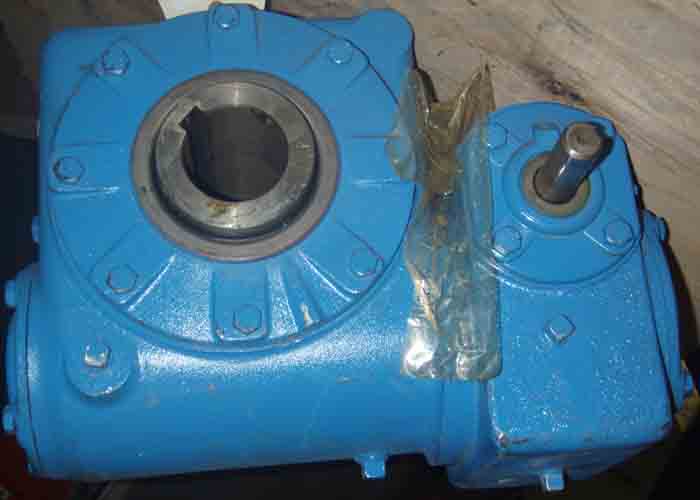

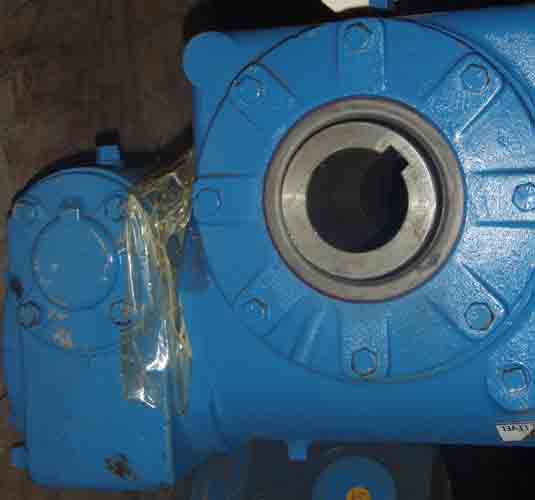

- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      MORSE     Jervis B. Webb Our ID No.       006280
Model:       30DS Ratio:       300
S/N       L94MM5023 Center Distance       3.00
IP Speed       1750 HP rating       0.53
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       3,460 Lb-Inches Shaft Diameters High Speed:   0.750
Low Speed:   1.938
Weight       70 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
300

5.83 RPM
.53 HP
1170 RPM
3.83 RPM
.38 HP
870 RPM
2.90 RPM
.30 HP
580 RPM
1.93 RPM
.21 HP
Notes:
    NEW SURPLUS
