Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

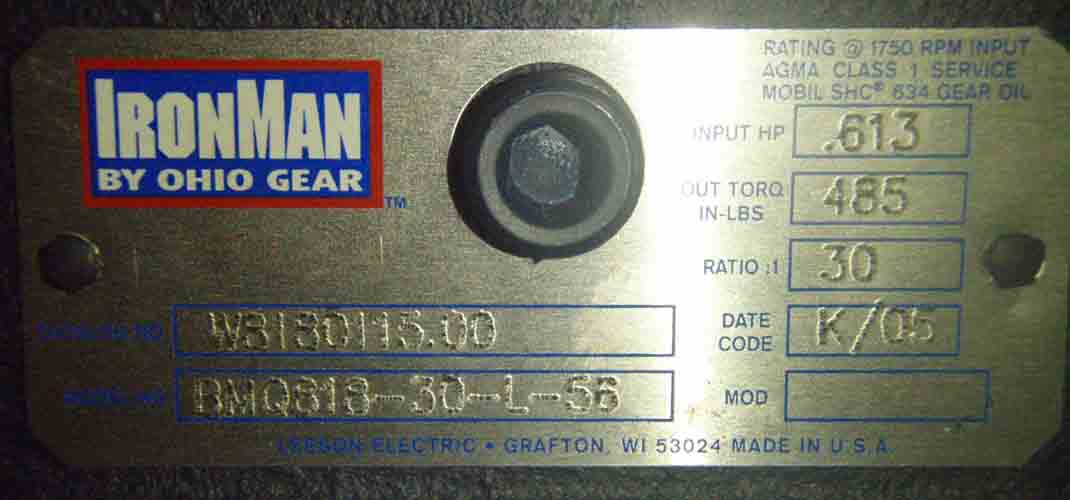

N A M E P L A T E       D A T A
Manufacturer:      OHIO GEAR     IRONMAN Our ID No.      006284
Model No:      BMQ818-30-L-56 Ratio:      30:1
CATALOG NUMBER      W8180115.00 Center Distance      1.750
IP Speed      1750 HP rating      .613
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      485 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  0.875
Weight      26 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
30:1

58 RPM
.61 HP
1170 RPM
38 RPM
.48 HP
870 RPM
28 RPM
.40 HP
Notes:


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

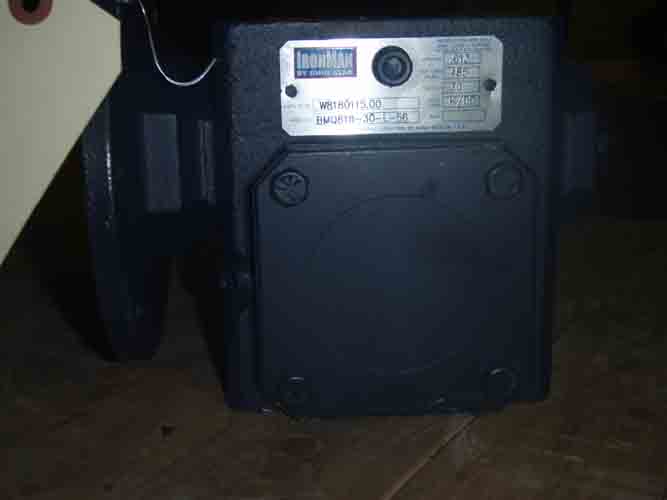

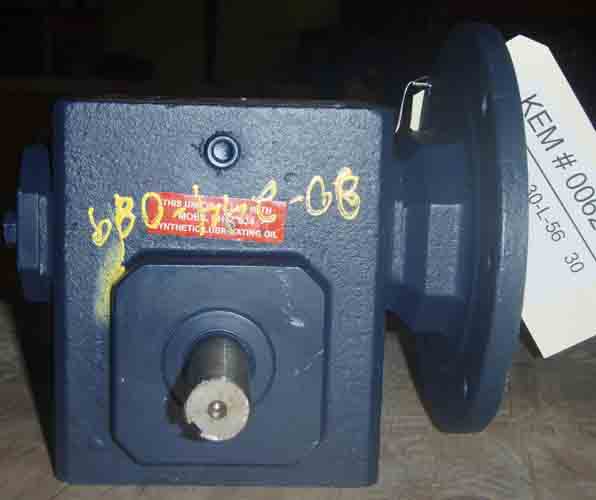

Click on images for larger view.
