- Speed Reducer Data Sheet -

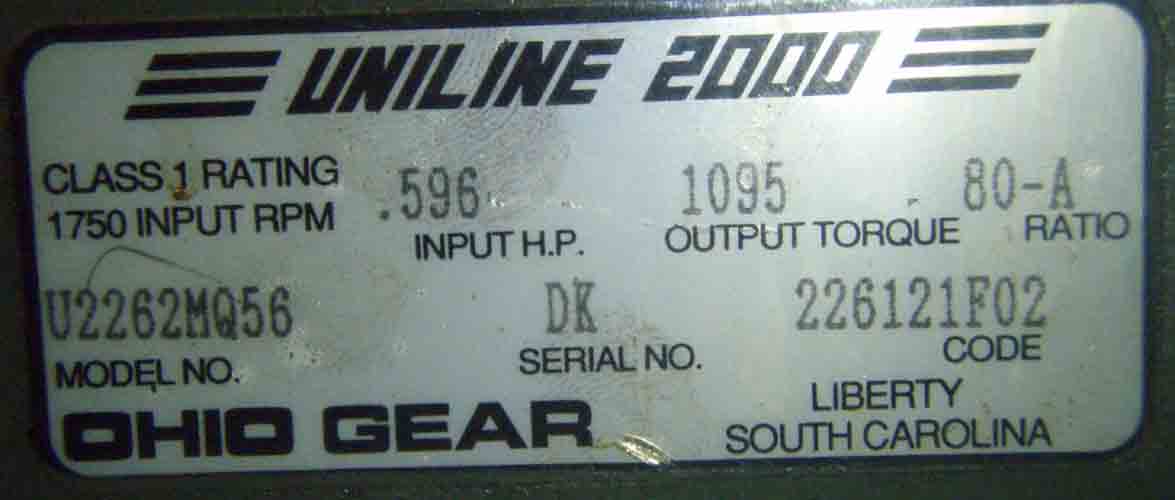

N A M E P L A T E       D A T A
Manufacturer:      OHIO GEAR     IRONMAN Our ID No.      006288
Model No:      U2Z62MQ56 Ratio:      80-A:1
CATALOG NUMBER      DK Center Distance 2.62
IP Speed      1750 HP rating      .596
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      1095 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.125
Weight      65 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
80-A:1

22 RPM
0.59 HP
1170 RPM
14 RPM
0.51 HP
870 RPM
10 RPM
0.41 HP
Notes:
   NEW SURPLUS
