Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

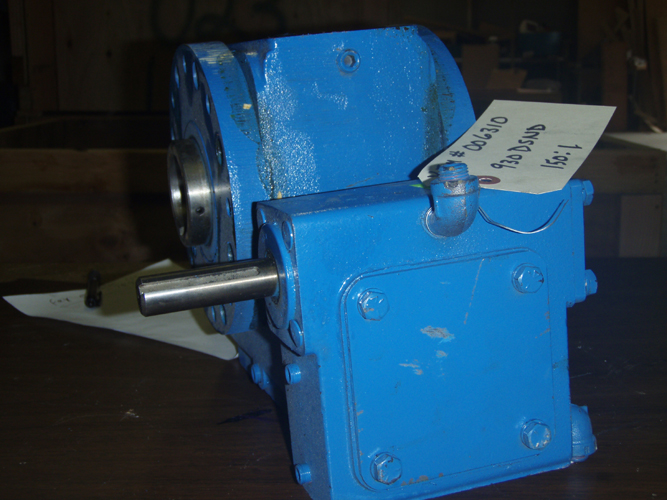

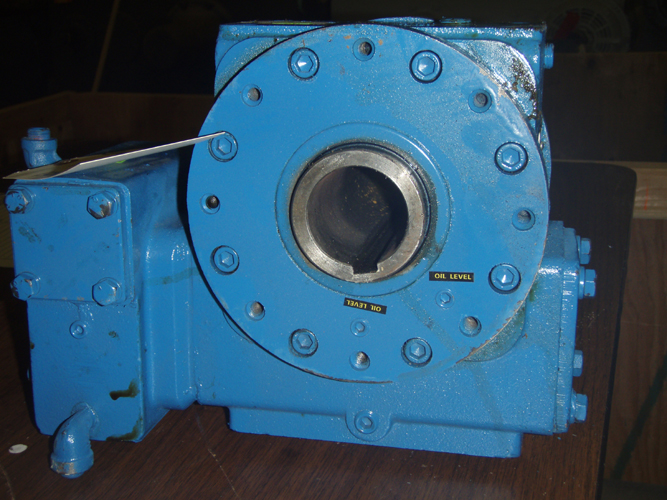

Manufacturer:      WINSMITH WORM GEAR REDUCER Our ID No.      006310
Model:      930DSND
     Looks like a replacement for a Morse or Jervis B Webb 30DS 		Ratio:      150
S/N      930XDSD068XGJ9 Center Distance
IP Speed      1750 HP rating      1.04
OP Speed:      11.6 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      3,184 Lb-Inches Shaft Diameters High Speed:  0.7500
Low Speed:  1.9375 Hollow
Weight       Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
150:1

11.66 RPM
1.04 HP
1170 RPM
RPM
HP
Notes:
Unused Surplus    This unit looks like a replacement for a Morse, Eberhardt Denver or Jervis B Webb 30DS conveyor drive.
