Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

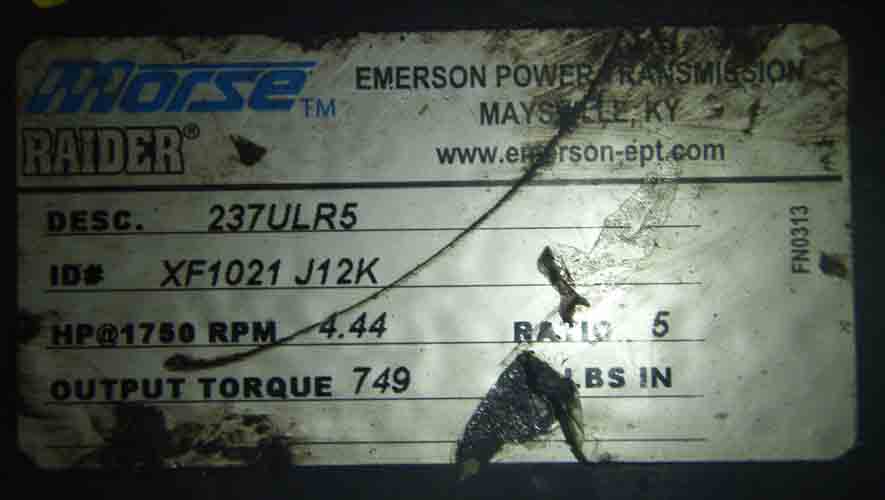

N A M E P L A T E       D A T A
Manufacturer:      MORSE     Raider Our ID No.       006313
Model:       237ULR5 Ratio:       5
S/N       XF1021J12K Center Distance       2.37
IP Speed       1750 HP rating       4.44
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       749 Lb-Inches Shaft Diameters High Speed:   1.125
Low Speed:   2.37
Weight       40 Lbs Approx. Assembly       ASSY LR
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
5

350 RPM
4.44 HP
1170 RPM
232 RPM
3.78 HP
Notes:
    NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

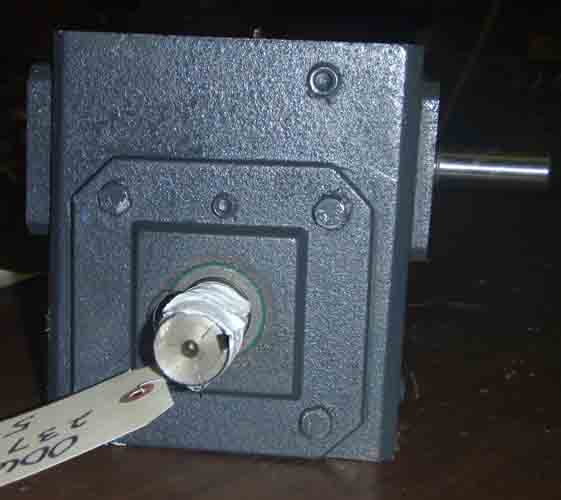

Click on images for larger view.
