Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

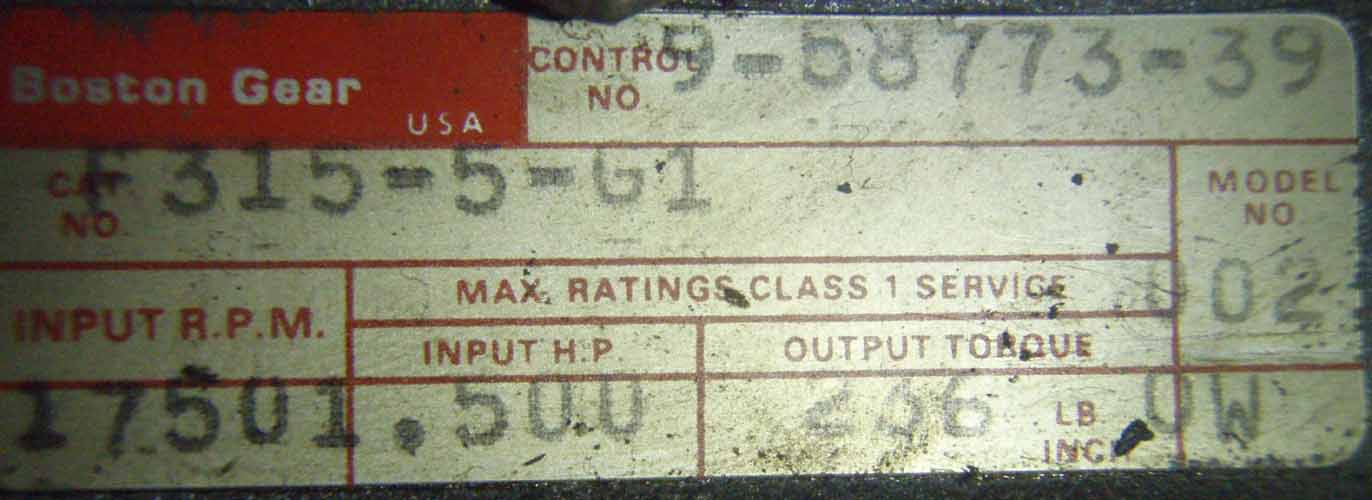

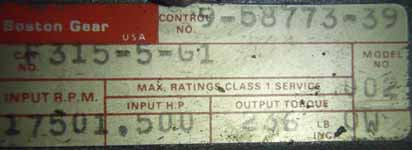

N A M E P L A T E       D A T A
Manufacturer:      BOSTON GEAR Our ID No.      006315
Model:      CAT #F315-5-G1 Ratio:      5:1
IP Speed       HP rating
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      236 Lb-Inches Shaft Diameters High Speed:
Low Speed:   0.750
Weight      20 Lbs Approx. Center Distance 1.54
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
5:1

350 RPM
1.49 HP
1170 RPM
230 RPM
1.09 HP
Notes:
   NEW SURPLUS
