- Speed Reducer Data Sheet -

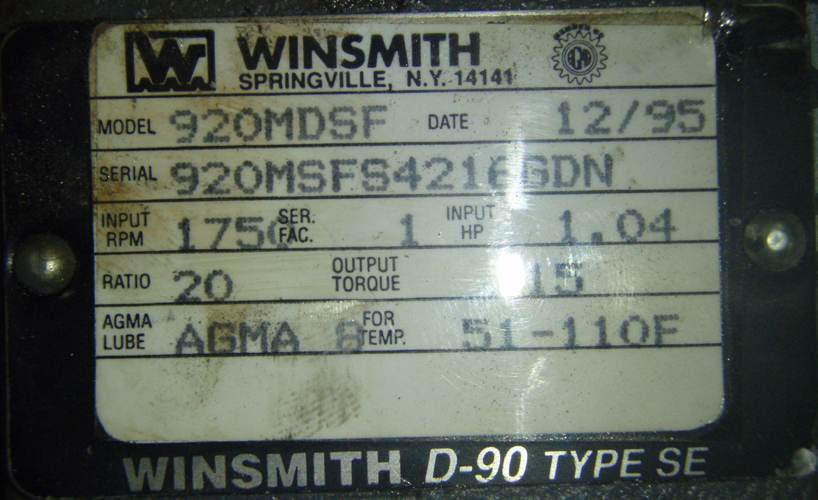

N A M E P L A T E       D A T A
Manufacturer:      WINSMITH WORM GEAR REDUCER Our ID No.      006331
Model:      920MDSF Ratio:      20
S/N      920MSFS4216GDN Center Distance      2.000
IP Speed      1750 HP rating      1.04
OP Speed:      88 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      615 Lb-Inches Shaft Diameters High Speed:  140TC
Low Speed:  2.000
Weight      35 Lbs Approx. Assembly      DR
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
20:1

88 RPM
1.04 HP
1170 RPM
58 RPM
0.80 HP
Notes:
    Unused surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

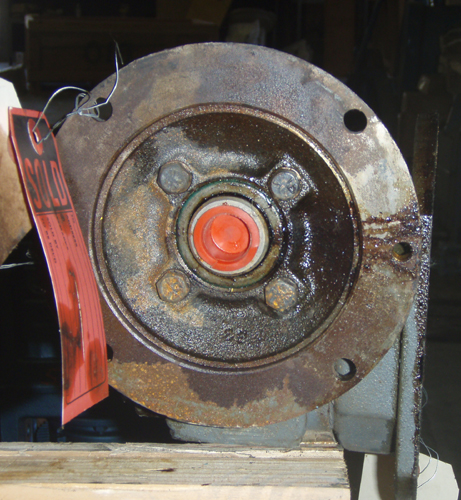

Click on images for larger view.
