- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      HUB CITY Our ID No.      006334
Model:      183 Ratio:      5
Assembly Number      0220-47511-183 Center Distance      1.75
IP Speed       HP rating
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       358 Lb-Inches Shaft Diameters High Speed:  0.500
Low Speed:  1.000 Hollow
Weight       25 Lbs Approx. Style (Assembly)      L
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
5:1

350 RPM
2.17 HP
1170 RPM
230 RPM
1.73 HP
870 RPM
170 RPM
1.42 HP
Notes:
  New Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

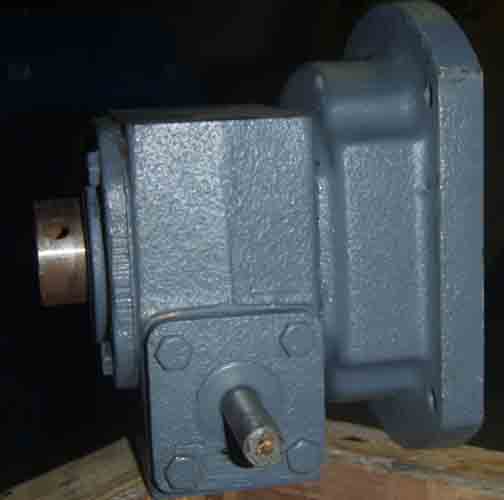

Click on images for larger view.
