Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       BALDOR Our ID No.       006336
Model:       FDA-932-900-B5-G Ratio:       900
MO# or S/N       GR0120AC49 Alt. S/N       E18980052
IP Speed       HP rating       .493 Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       4595 Lb-Inches Shaft Diameters High Speed:   56C
Low Speed:   1.375
Weight       106 Lbs Approx. Assembly       G
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
900:1

1.9 RPM
0.50 HP
Notes:
Condition: NEW SURPLUS
CENTER DISTANCE: P=1.75, S=3.25



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

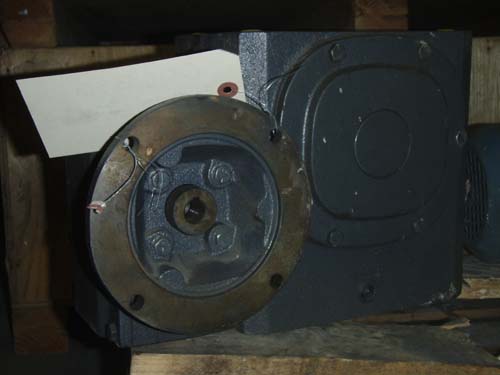

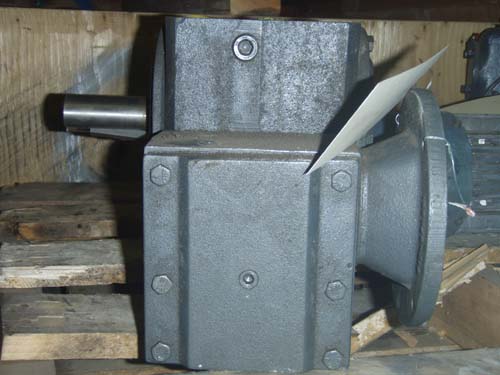

Click on images for larger view.
