- Speed Reducer Data Sheet -

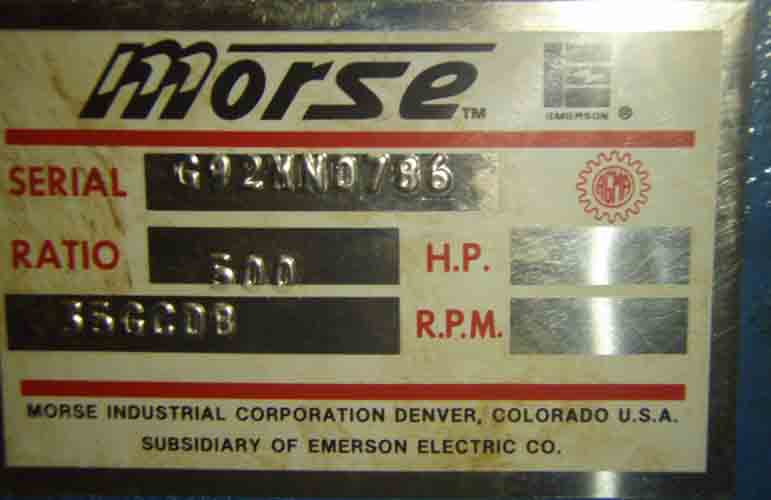

N A M E P L A T E       D A T A
Manufacturer:      MORSE     PowerGear Our ID No.       006390
Model:       3SGCDB Ratio:       500
S/N       G92MN0786 Center Distance       3.50 / 2.00
IP Speed       1750 HP rating       0.55
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       5,477 Lb-Inches Shaft Diameters High Speed:
Low Speed:   1.625
Weight       120 Lbs Approx. Assembly       ASSY R-L
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
500

3.50 RPM
.55 HP
1170 RPM
2.30 RPM
.39 HP
Notes:
    NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

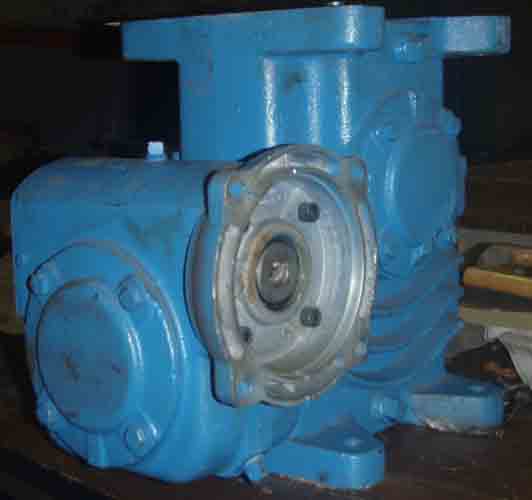

Click on images for larger view.
