Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      BOSTON GEAR Our ID No.      006393
Model:      HF-721-50 Ratio:      50:1
IP Speed       HP rating      .540
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      687 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.1875
Weight      30 Lbs Approx. Center Distance 2.06
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
50:1

35 RPM
0.54 HP
1170 RPM
23 RPM
0.38 HP
Notes:
   NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

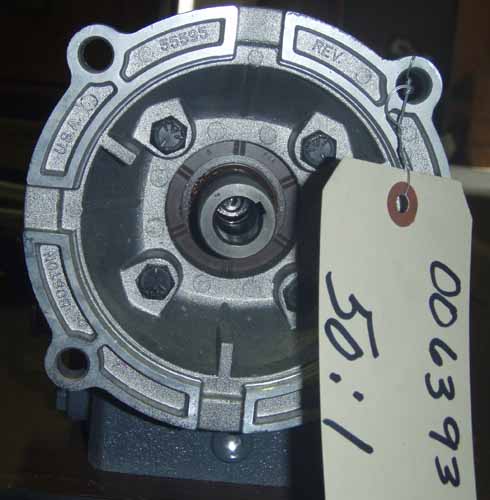

Click on images for larger view.
