Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

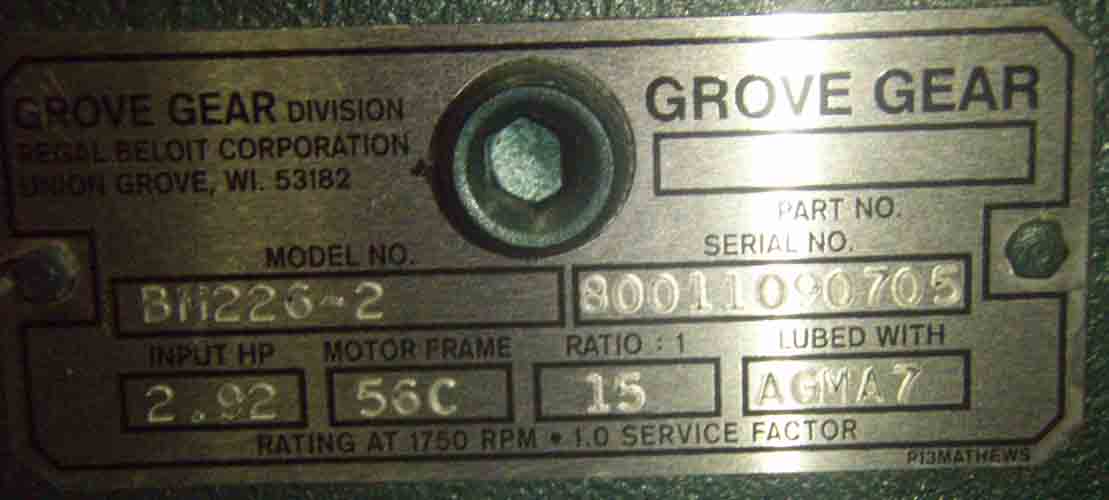

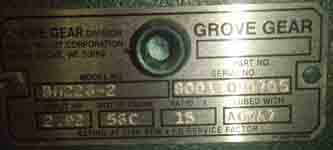

N A M E P L A T E       D A T A

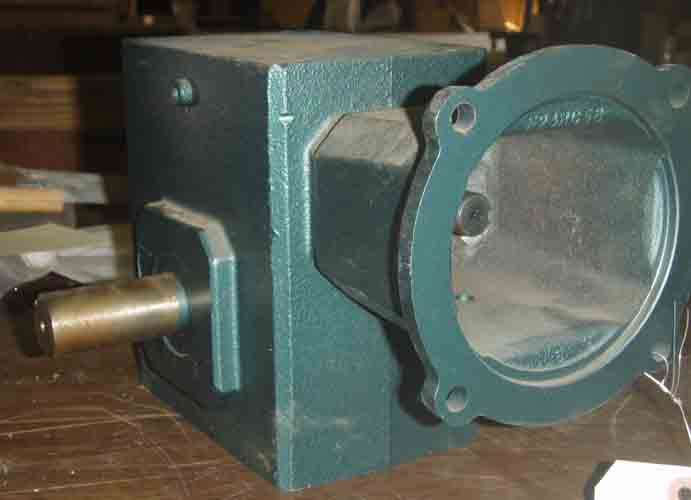

Manufacturer:      GROVE GEAR     Flexaline SERIES Our ID No.      006399
Model No:      BM226-2 Ratio:      15
S/N      80011090705 Center Distance      2.62
IP Speed      1750 HP rating      2.92
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      1,414 Lb-Inches Shaft Diameters High Speed:  0.750 / 56c
Low Speed:  1.250
Weight      65 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
15 :1

116 RPM
2.92 HP
1170 RPM
78 RPM
2.32 HP
870 RPM
58 RPM
1.89 HP
Notes:
   NEW SURPLUS
