Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

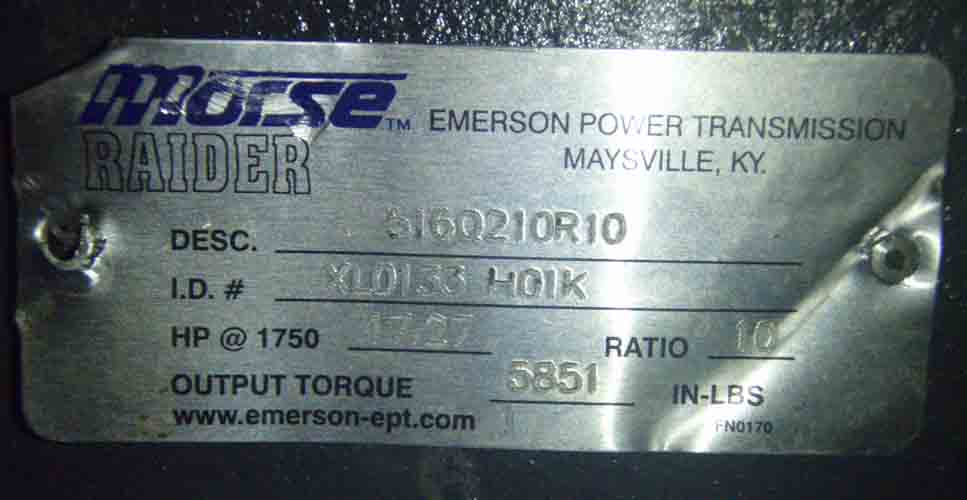

N A M E P L A T E       D A T A
Manufacturer:      MORSE     Raider Our ID No.       006410
Model:       516Q210R10 Ratio:       10
S/N       XL0133H01K Center Distance       5.16
IP Speed       1750 HP rating       17.27
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       5,851 Lb-Inches Shaft Diameters High Speed:   210TC
Low Speed:   2,000
Weight       250 Lbs Approx. Assembly       ASSY R
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
10

175 RPM
17.27 HP
1170 RPM
116 RPM
14.49 HP
Notes:
    UNUSED SURPLUS, SHELF WEAR

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

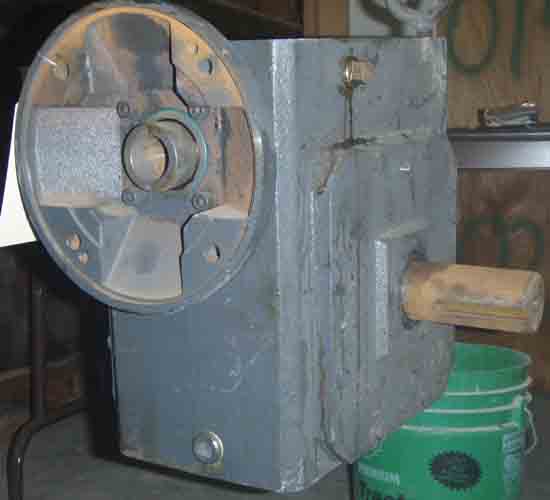

Click on images for larger view.
