- Speed Reducer Data Sheet -
HOME

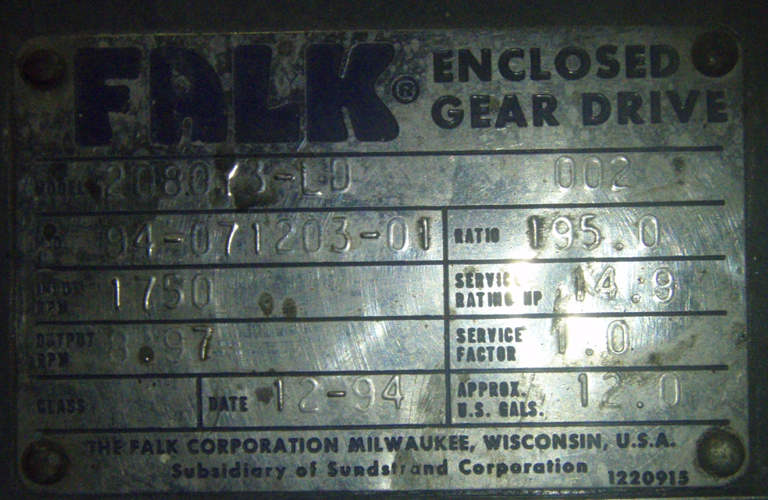

N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      006416
Model:      2080Y3LD Ratio:      195.0
MO# or S/N      94-071203-01 Alt. S/N
IP Speed      1750 HP rating      14.9 Cat. Rating
OP Speed:      8.97 SF / SC      1.0
Date      12-94 Oil Capacity      12.0
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      99,900 Lb-Inches Shaft Diameters High Speed:  1.250
Low Speed:  4.000
Weight      1,200 Lbs Approx. Assembly      13
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
195.0

9.0 RPM
14.9 HP
1430 RPM
7.5 RPM
12.3 HP
1170 RPM
6.0 RPM
10.1 HP
870 RPM
4.5 RPM
7.59 HP
720 RPM
3.8 RPM
6.31 HP
580 RPM
3.0 RPM
5.11 HP
Notes:
Condition:
unused surplus
