- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      MORSE     PowerGear Our ID No.       006436
Model:       60W-DB Ratio:       200
S/N       K90MR0569 Center Distance       6.00 / 3.00
IP Speed       1750 HP rating       4.30
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       21,655 Lb-Inches Shaft Diameters High Speed:   1.000
Low Speed:   2.500
Weight       450 Lbs Approx. Assembly       ASSY R-LR
H.S. Shaft
RPM
Ratio Approx. L.S.
Shaft RPM
HP
Ratings
1750 RPM
200

8.75 RPM
4.30 HP
1170 RPM
5.57 RPM
3.06 HP
870 RPM
4.35 RPM
2.43 HP
580 RPM
2.90 RPM
1.72 HP
Notes:
    NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

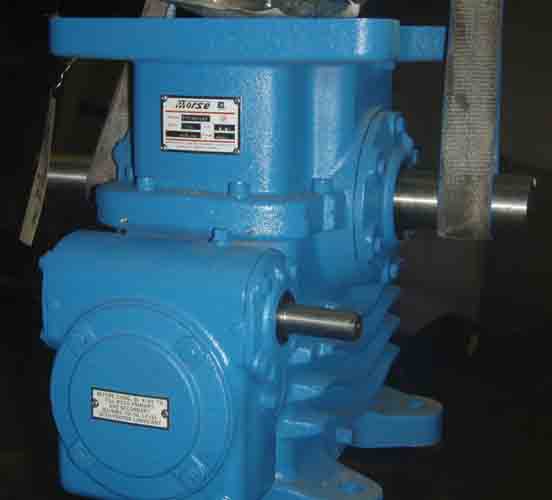

Click on images for larger view.
