- Speed Reducer Data Sheet -

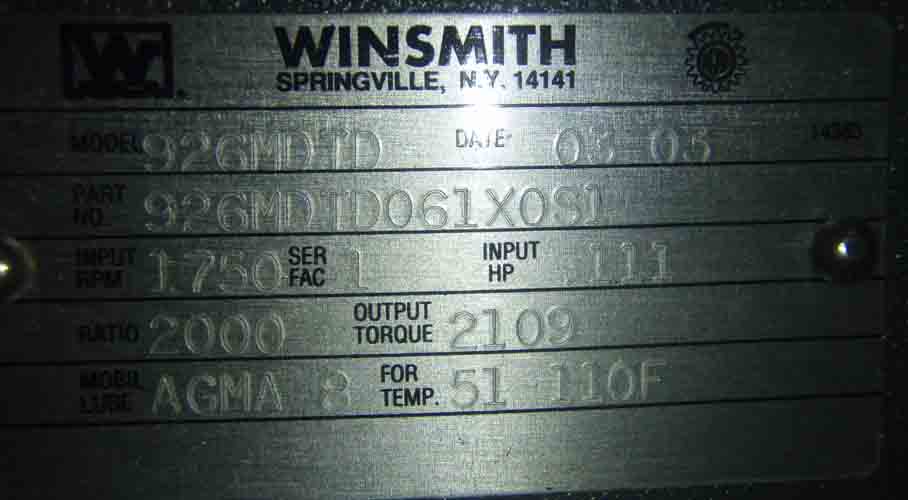

N A M E P L A T E       D A T A
Manufacturer:      WINSMITH WORM GEAR REDUCER Our ID No.       006446
Model:      926MDTD Ratio:       2000
S/N       926MDTD061X0S1 Center Distance       P=1.750
      s=2.625
IP Speed      1750 HP rating       0.11
OP Speed:      .88 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      2,109 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.250
Weight      55 Lbs Approx. Assembly       LU-R
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
2000:1

.88 RPM
0.111 HP
1170 RPM
.58 RPM
.076 HP
Notes:
