Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      MORSE     Cobra Our ID No.       006462
Model:      C18Q56H30 Ratio:      30
S/N      MC2017CO4N Center Distance      1.75
IP Speed      1750 HP rating      0.55
OP Speed:      58 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      472 Lb-Inches Shaft Diameters High Speed:  5/8 56C
Low Speed:  0.875 HOLLOW
Weight      10 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
30

58 RPM
0.55 HP
1170 RPM
RPM
HP
870 RPM
RPM
HP
580 RPM
RPM
HP
Notes:

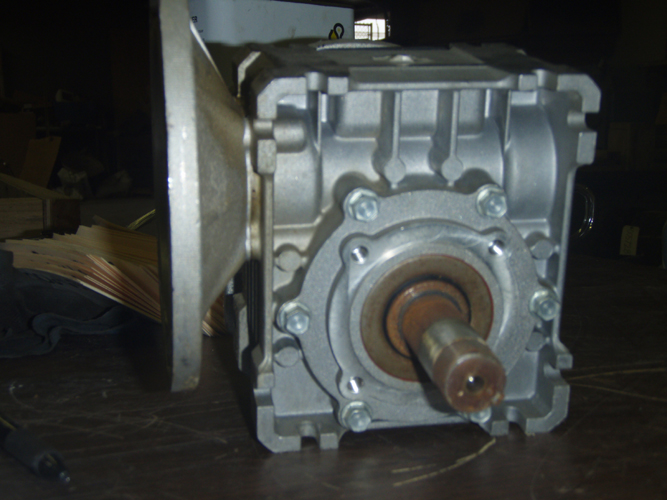

    Unused Surplus, has an output flange and low speed shaft installed in the hollow bore.

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci


Click on images for larger view.
