- Speed Reducer Data Sheet -

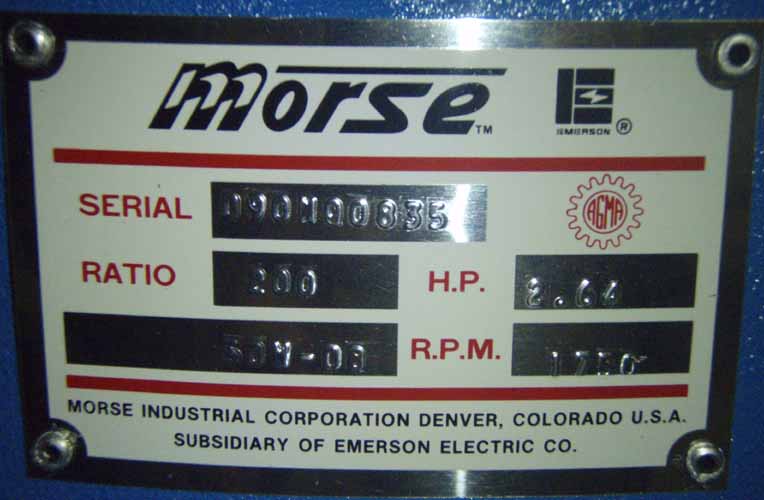

N A M E P L A T E       D A T A
Manufacturer:      MORSE     PowerGear Our ID No.       006474
Model:       50W-DB Ratio:       200
S/N       D90MQ0835 Center Distance      P=2.50/S=5.00
IP Speed       1750 HP rating       2.64
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       13,117 Lb-Inches Shaft Diameters High Speed:   0.750
Low Speed:   2.375
Weight       300 Lbs Approx. Assembly       ASSY R-LR
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
200

8.75 RPM
2.64 HP
1170 RPM
5.75 RPM
1.87 HP
870 RPM
4.35 RPM
1.48 HP
580 RPM
2.90 RPM
1.05 HP
Notes:
    NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

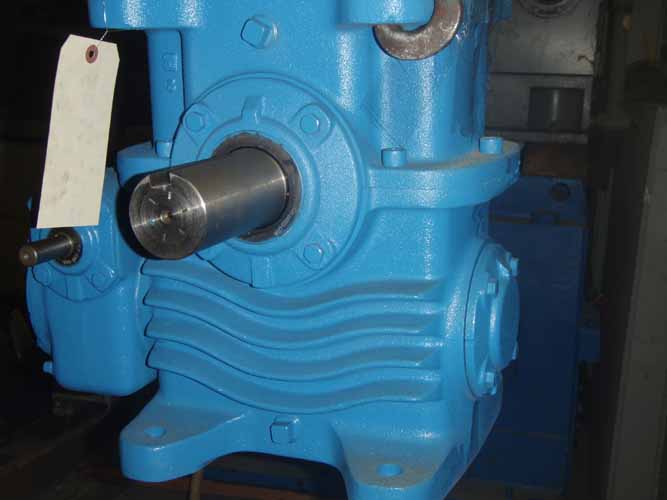

Click on images for larger view.
