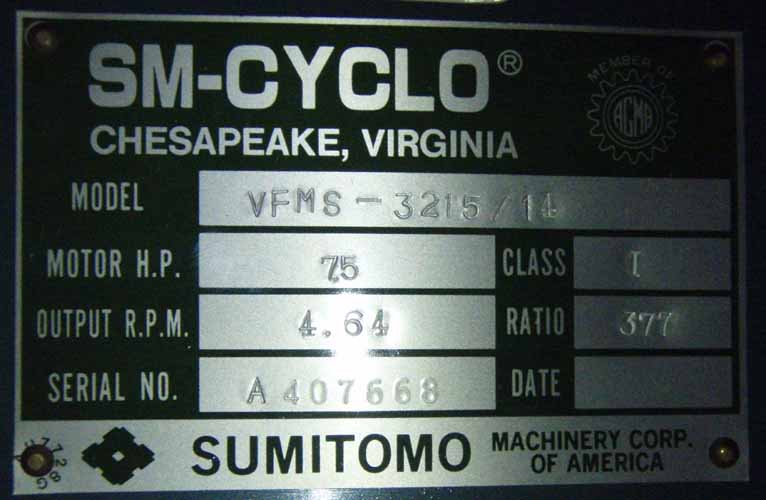

R E D U C E R       N A M E P L A T E       D A T A
MANUFACTURER      SM-CYCLO Our ID No.      006477
MODEL:      VFMS-3215/14 RATIO      377
HP      7.5 SERVICE FACTOR
INPUT SPEED       OUTPUT SPEED      4.64
S/N      A407668 Torque       lb-in

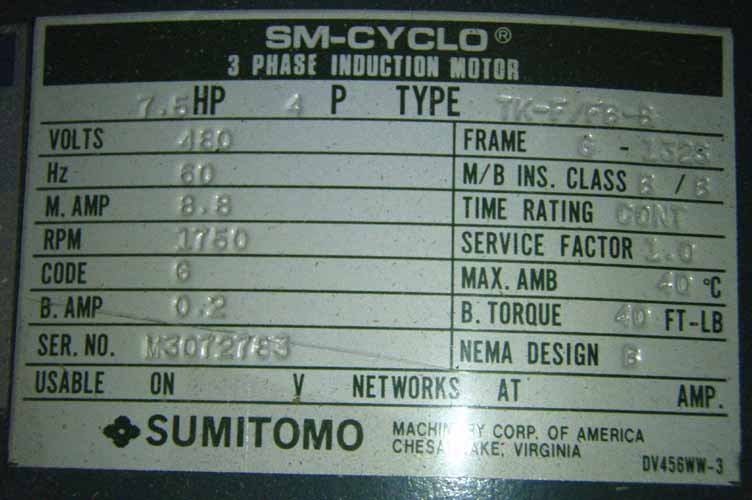

M O T O R       N A M E P L A T E       D A T A
HP      7.5 Poles      4 TYPE      TK-F/FB-8
Volts      480 FRAME      G-132S
Hz      60 M/B INS. CLASS      B
MOTOR AMP      8.8 DUTY      CONT
RPM      1750 SERVICE FACTOR      1.0
CODE      G MAX. AMB      40 C
BRAKE AMP       BRAKE TORQUE      40 FT-LB
SERIAL NO.      M3072783 NEMA DESIGN      B
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  4.250
Notes:
Condition:


NEW SURPLUS
