Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

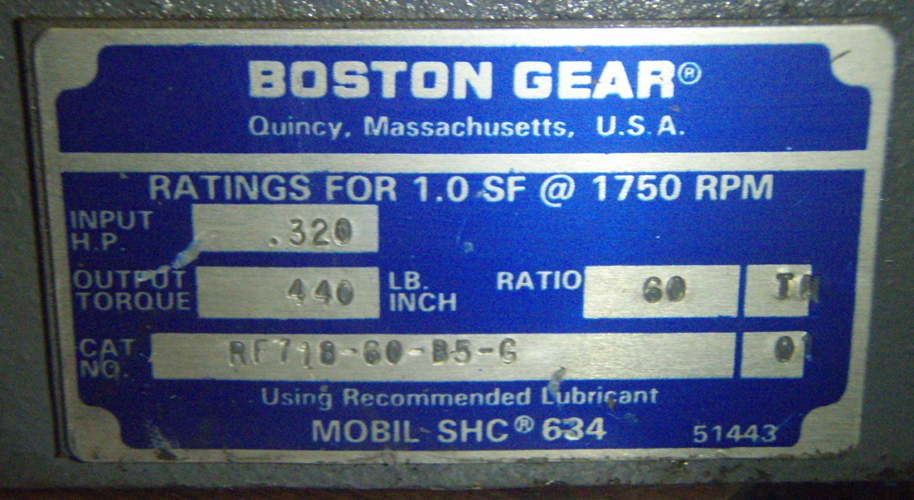

N A M E P L A T E       D A T A
Manufacturer:      BOSTON GEAR Our ID No.      006482
Model:      RF718-60-B5-G Ratio:      60
IP Speed      1750 HP rating      0.32
OP Speed:      29.2 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      440 Lb-Inches Shaft Diameters High Speed:  0.625 / 56C
Low Speed:  0.875
Weight      27 Lbs Approx. Center Distance      1.75
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
60

29.2 RPM
0.32 HP
1170 RPM
19.2 RPM
0.21 HP
870 RPM
RPM
HP
Notes:


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

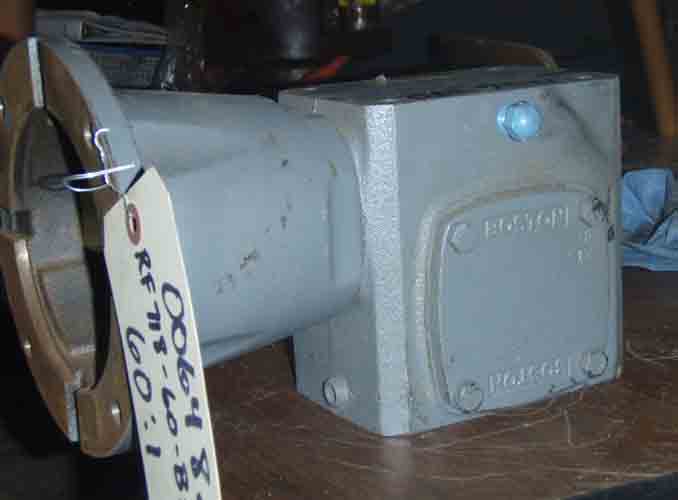

Click on images for larger view.
