- Speed Reducer Data Sheet -

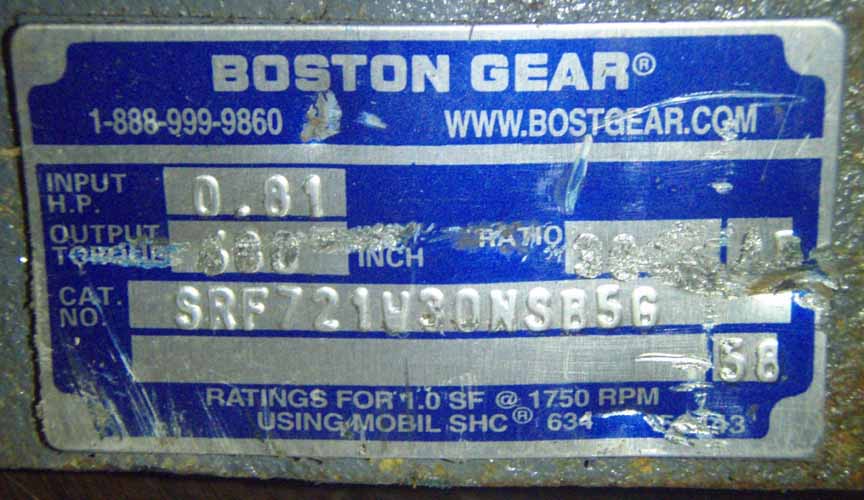

N A M E P L A T E       D A T A
Manufacturer:      BOSTON GEAR Our ID No.      006486
Model:      SRF721W-30-NS-B5-G Ratio:      30
IP Speed      1750 HP rating      30
OP Speed:      1750 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       Lb-Inches Shaft Diameters High Speed:  0.625 / 56C / 140TC
Low Speed:  1.125 HOLLOW BORE
Weight      27 Lbs Approx. Center Distance      2.06
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
30

58.3 RPM
0.81 HP
1170 RPM
38.3 RPM
0.48 HP
870 RPM
RPM
HP
Notes:
   UNUSED SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

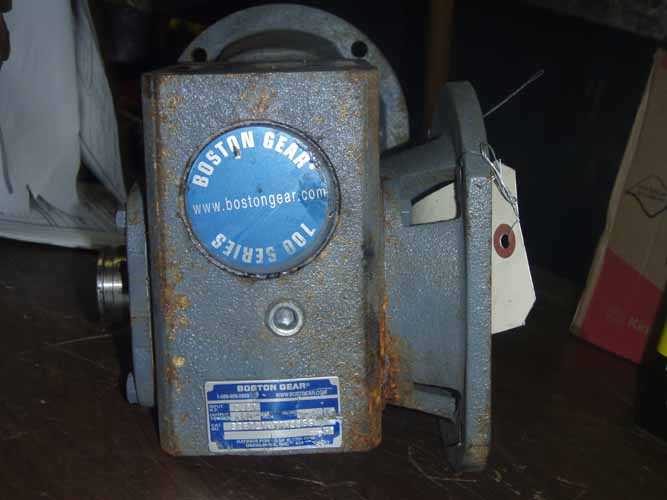

Click on images for larger view.
