- Speed Reducer Data Sheet -

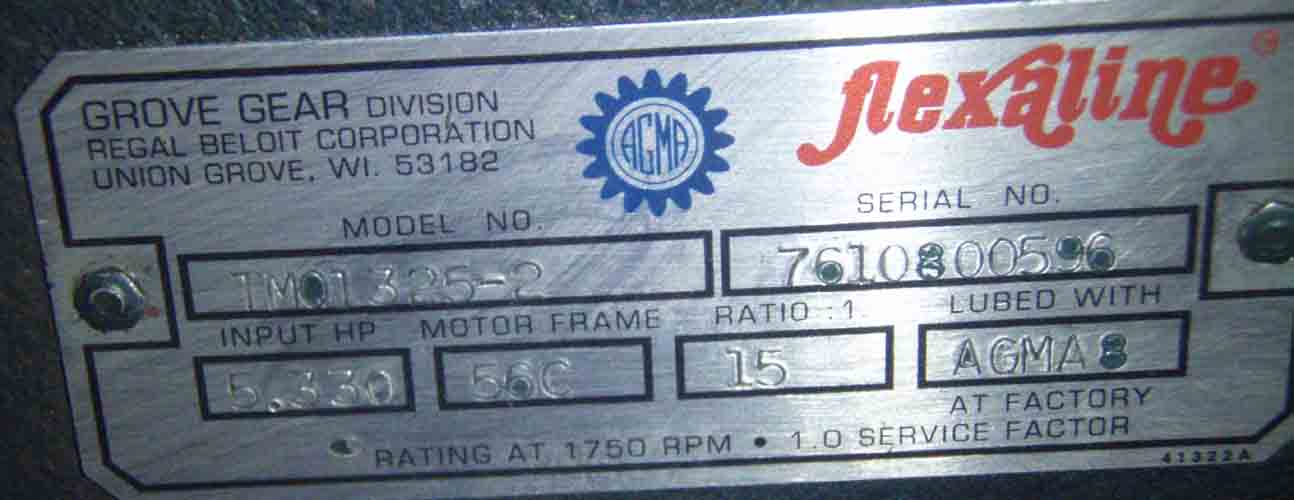

N A M E P L A T E       D A T A
Manufacturer:      GROVE GEAR     Flexaline SERIES Our ID No.      006495
Model No:      TMQ1325-2
     BMQ1325-2
     UMQ1325-3
 		Ratio:      15
S/N      7610800596 Center Distance      3.25
IP Speed      1750 HP rating      5.33
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      2,500 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.500
Weight      110 Lbs Approx. Assembly      WO-LH or WU-RH or we can change for you
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
15:1

120 RPM
5.33 HP
1170 RPM
80 RPM
4.59 HP
870 RPM
60 RPM
3.94 HP
Notes:
   Unused
