Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

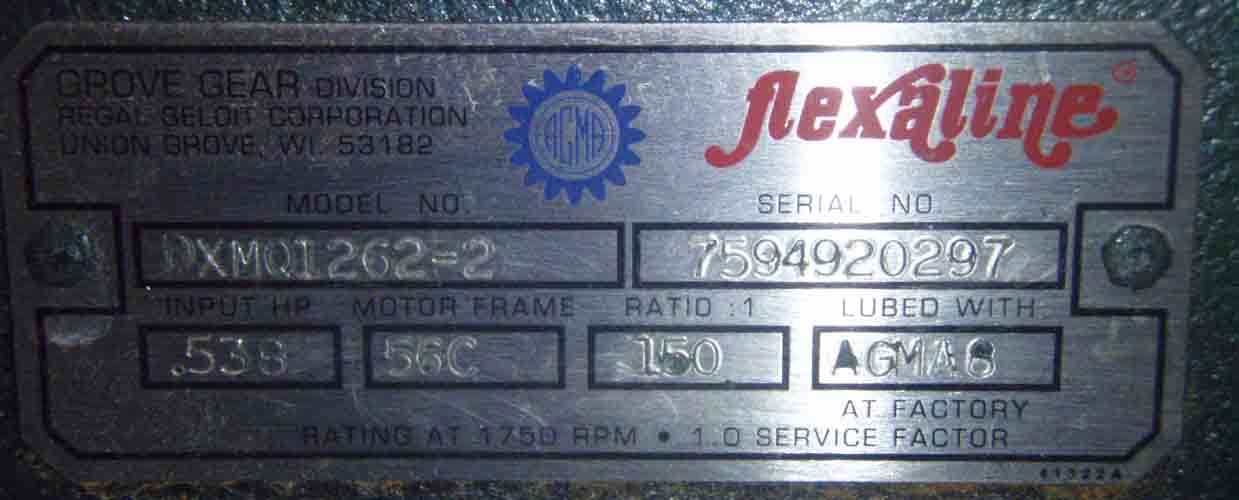

N A M E P L A T E       D A T A
Manufacturer:      GROVE GEAR     Flexaline SERIES Our ID No.      006496
Model No:      DXMQ1262-2
     DXTMQ1262-2 		Ratio:      150
S/N      7594920297 Center Distance      P=H / S=2.62
IP Speed      1750 HP rating      0.538
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      2,102 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.250
Weight      95 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
150 :1

12 RPM
0.538 HP
Notes:
   Unused

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

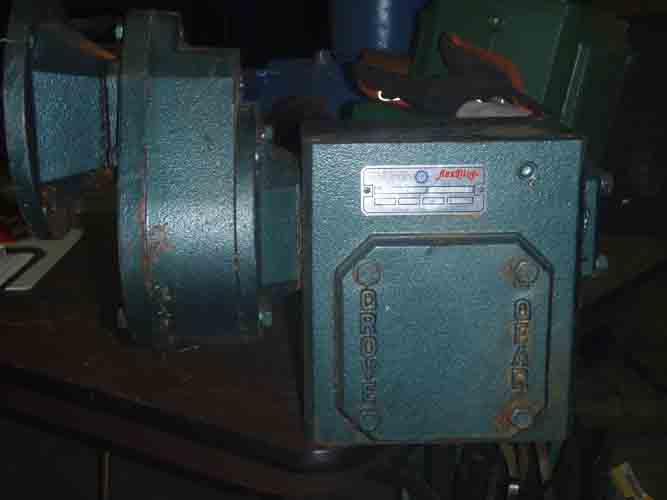

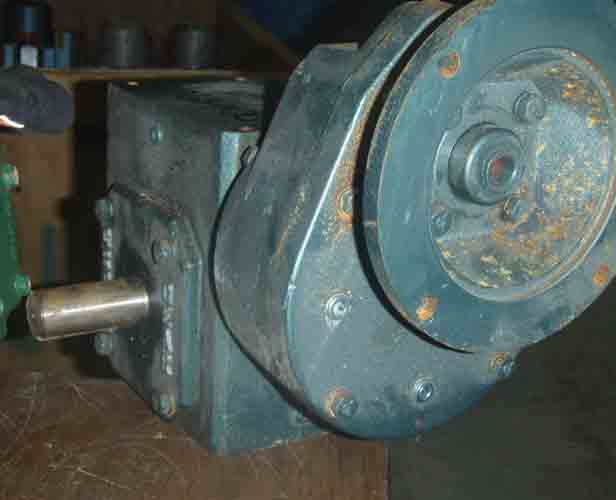

Click on images for larger view.
