Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

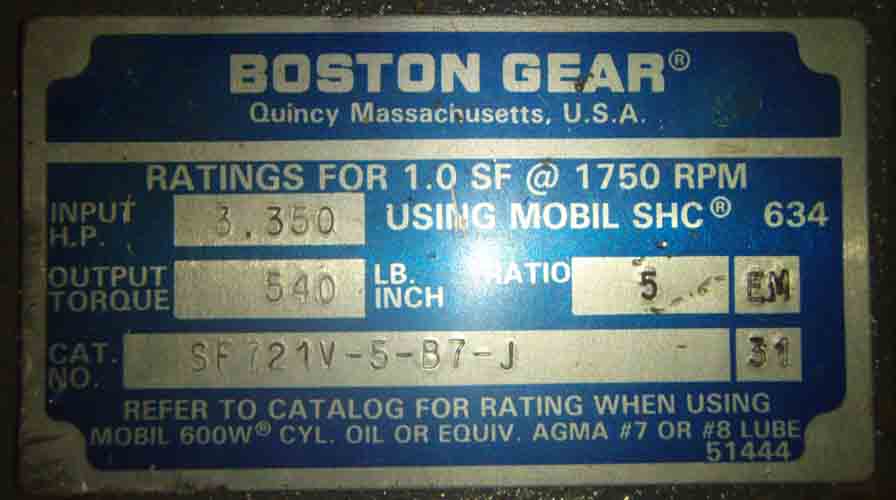

N A M E P L A T E       D A T A
Manufacturer:      BOSTON GEAR Our ID No.      006507
Model:      SF721V-5-B7-J Ratio:      5
IP Speed      1750 HP rating      3.35
OP Speed:      350 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      540 Lb-Inches Shaft Diameters High Speed:  140TC
Low Speed:  1.125 HOLLOW BORE
Weight       Lbs Approx. Center Distance      2.06
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
5

350 RPM
3.35 HP
1170 RPM
230 RPM
2.00 HP
870 RPM
RPM
HP
Notes:
   UNUSED SURPLUS
