Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

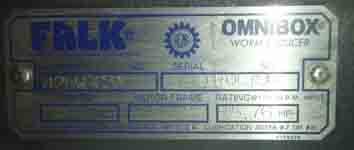

N A M E P L A T E       D A T A

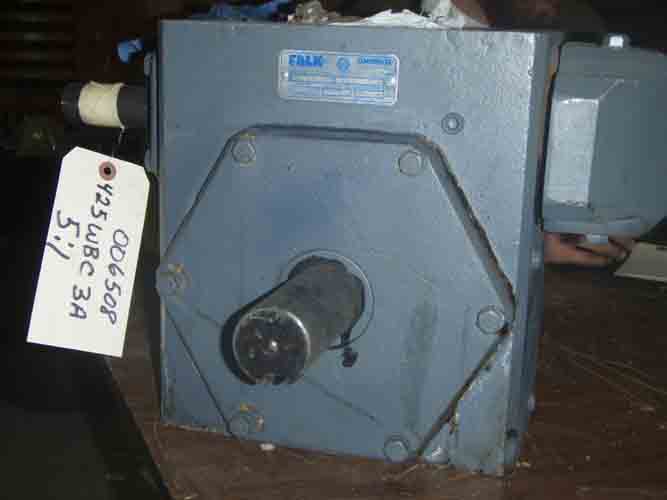

Manufacturer:      FALK     OMNIBOX SERIES Our ID No.      006508
Model No:      425WBC3A Ratio:      5:1
S/N      47004700195 Center Distance      4.25
IP Speed      1750 HP rating      15.76
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      2,698 Lb-Inches Shaft Diameters High Speed:  1.250
Low Speed:  1.875
Weight      150 Lbs Approx. Assembly      3
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
5:1

350 RPM
15.76 HP
1170 RPM
234 RPM
13.36 HP
870 RPM
174 RPM
11.77 HP
Notes:
   NEW SURPLUS
