Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      OHIO GEAR     IRONMAN (LEESON) Our ID No.      006569
Model No:      B826-100-L Ratio:      100
CATALOG NUMBER      W8260012.00 Center Distance       2.62
IP Speed       HP rating      .399
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      856 Lb-Inches Shaft Diameters High Speed:   .750
Low Speed:   1.125

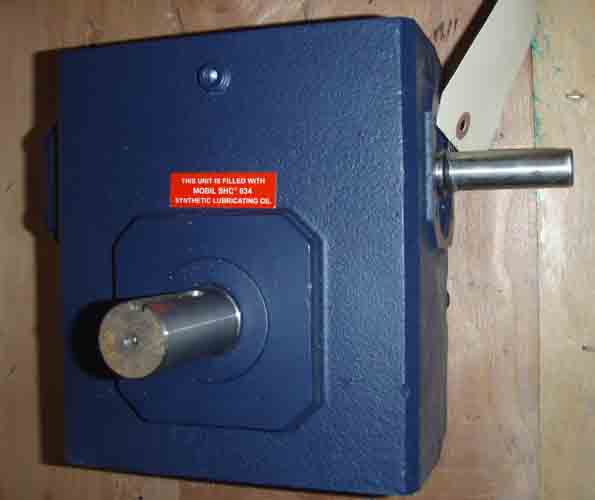

Weight       60 Lbs Approx. Assembly       SEE PICTURE BELOW
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM

RPM
HP
1170 RPM
RPM
HP
870 RPM
RPM
HP
580 RPM
RPM
HP
Notes:
    New Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci


Click on images for larger view.
