Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

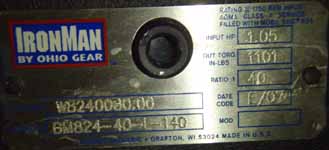

N A M E P L A T E       D A T A
Manufacturer:      OHIO GEAR     IRONMAN Our ID No.      006583
Model No:      BM824-40-L-140 Ratio:      40
CATALOG NUMBER      W8240080.00 Center Distance      2.375
IP Speed      1750 HP rating      1.05
OP Speed:      44 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      1,101 Lb-Inches Shaft Diameters High Speed:  0.750, 140TC, or 56C w correct size hub
Low Speed:  1.125
Weight      50 Lbs Approx. Assembly      WO-LH
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
40

44 RPM
1.05 HP
1170 RPM
29 RPM
0.88 HP
870 RPM
21 RPM
0.74 HP
580 RPM
RPM
HP
Notes:
   Unused surplus
