- Speed Reducer Data Sheet -

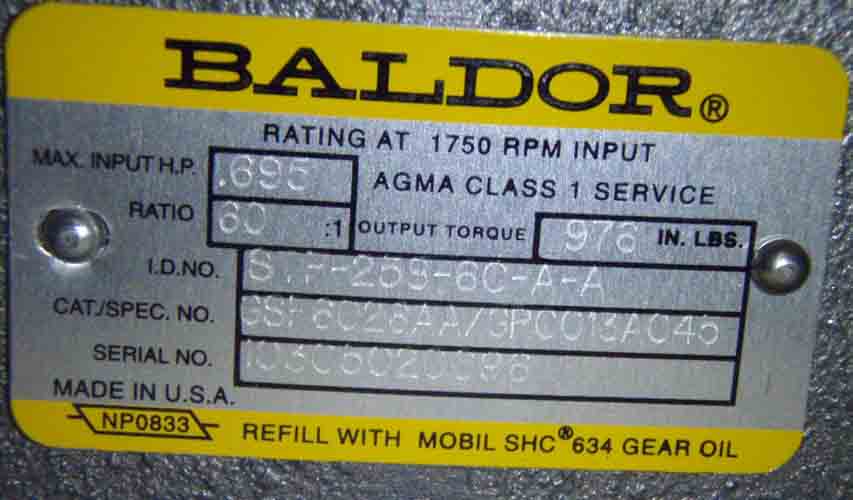

N A M E P L A T E       D A T A
Manufacturer:      BALDOR GRANT GEAR Our ID No.      006592
Model:      STF-258-60-A-A Ratio:      60
IP Speed      1750 HP rating      0.695
OP Speed:      29 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      976 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.125
Weight      45 Lbs Approx. Center Distance      A
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
60

29 RPM
0.695 HP
1170 RPM
20 RPM
0.525 HP
Notes:
   NEW SURPLUS
 10305020096
