- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      006595
Model:      2050YB3-L Ratio:      34.34
MO# or S/N      95-067092-01 Alt. S/N
IP Speed      1750 HP rating      7.5 Cat. Rating
OP Speed:      50.96 SF / SC      1.72 SF
Date      6-95 Oil Capacity      3.5
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      31,400 Lb-Inches Shaft Diameters High Speed:  1.125
Low Speed:  2.750
Weight      500 Lbs Approx. Assembly      45
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
34.34

50 RPM
25.4 HP
1430 RPM
40 RPM
20.9 HP
1170 RPM
34 RPM
17.2 HP
870 RPM
25 RPM
12.9 HP
720 RPM
21 RPM
10.7 HP
580 RPM
17 RPM
8.69 HP
Notes:
Condition:USED



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

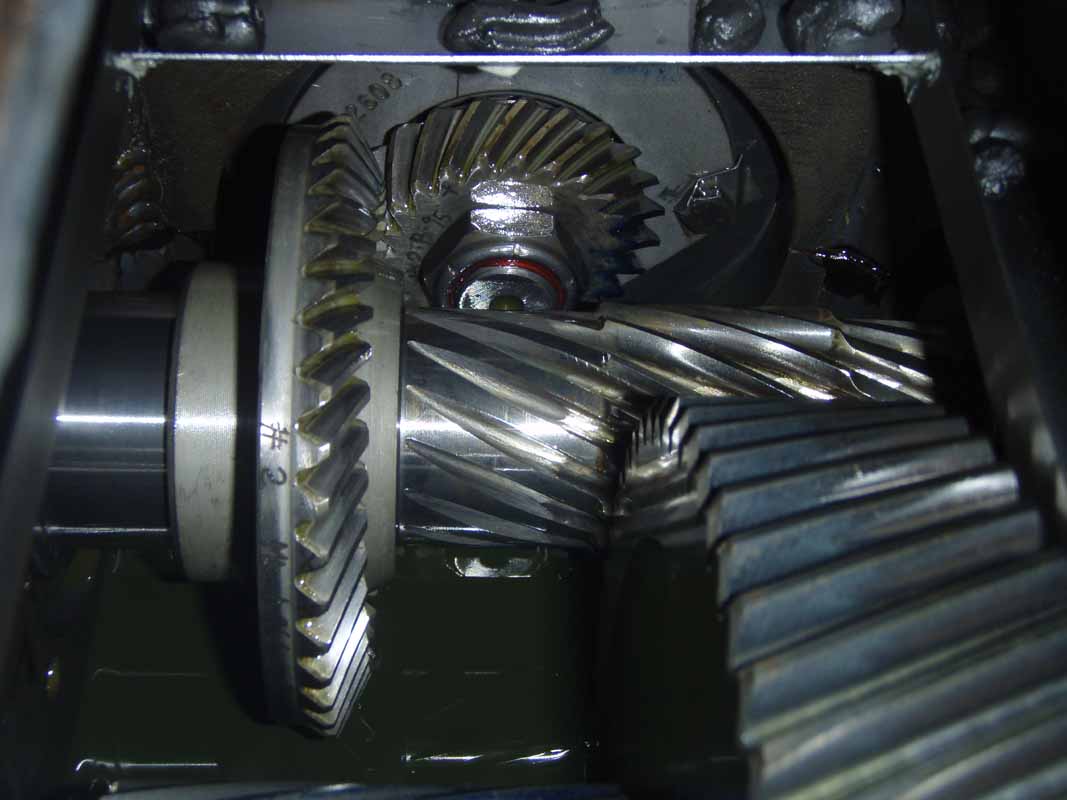

Click on images for larger view.
