- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      006598

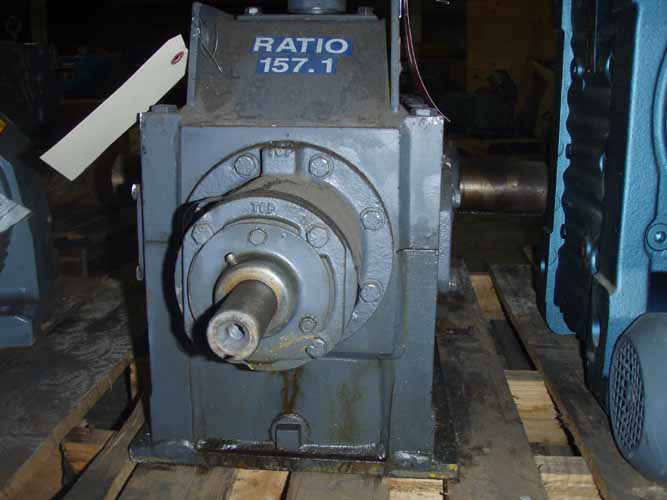

Model:      2050YB3-LD Ratio:      157.1
MO# or S/N      92066416-01 Alt. S/N
IP Speed      1750 HP rating      5 Cat. Rating
OP Speed:      11.1 SF / SC      1.2 SF
Date      9-92 Oil Capacity      3.5
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      31,900 Lb-Inches Shaft Diameters High Speed:  1.125
Low Speed:  2.750
Weight      500 Lbs Approx. Assembly      46
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
157.1

11 RPM
5.07 HP
1430 RPM
9 RPM
4.84 HP
1170 RPM
7.5 RPM
3.99 HP
870 RPM
5.5 RPM
2.99 HP
720 RPM
4.5 RPM
2.49 HP
580 RPM
3.8 RPM
2.01 HP
Notes:
Condition: USED
