- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

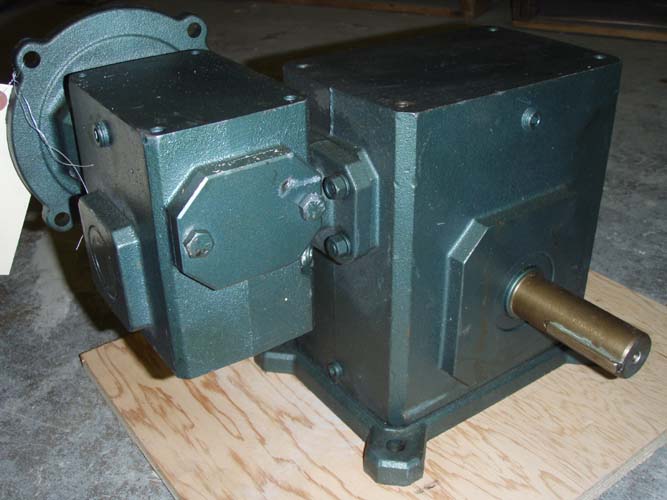

Manufacturer:      GROVE GEAR     Flexaline SERIES Our ID No.      006610
Model No:      DTMQ230-2 Ratio:      150
S/N      87008020901 Center Distance      P=1.54 / S=3.00
IP Speed      1750 HP rating      .970
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      3,482 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.250
Weight      120 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
150 :1

11.7 RPM
0.970 HP
1170 RPM
7.80 RPM
0.694 HP
870 RPM
5.80 RPM
0.540 HP
Notes:
   UNUSED SURPLUS
