Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

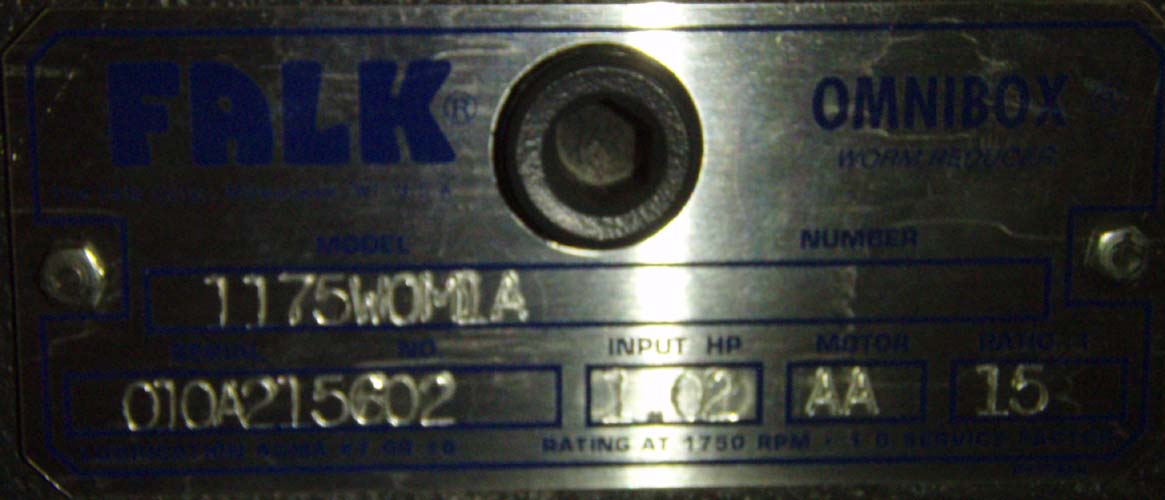

N A M E P L A T E       D A T A
Manufacturer:      FALK     OMNIBOX SERIES Our ID No.      006613
Model No:      1175WOM1A Ratio:      15
S/N      010A215602 Center Distance      1.75
IP Speed      1750 HP rating      1.02
OP Speed:      117 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      473 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  0.875

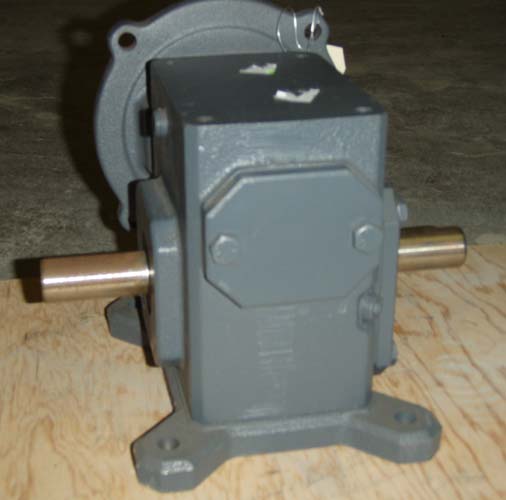

Weight      26 Lbs Approx. Assembly      WORM OVER DOUBLE OUTPUT
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
15 :1

117 RPM
1.02 HP
1170 RPM
78 RPM
0.80 HP
870 RPM
58 RPM
0.65 HP
Notes:
   UNUSED SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci


Click on images for larger view.
