Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

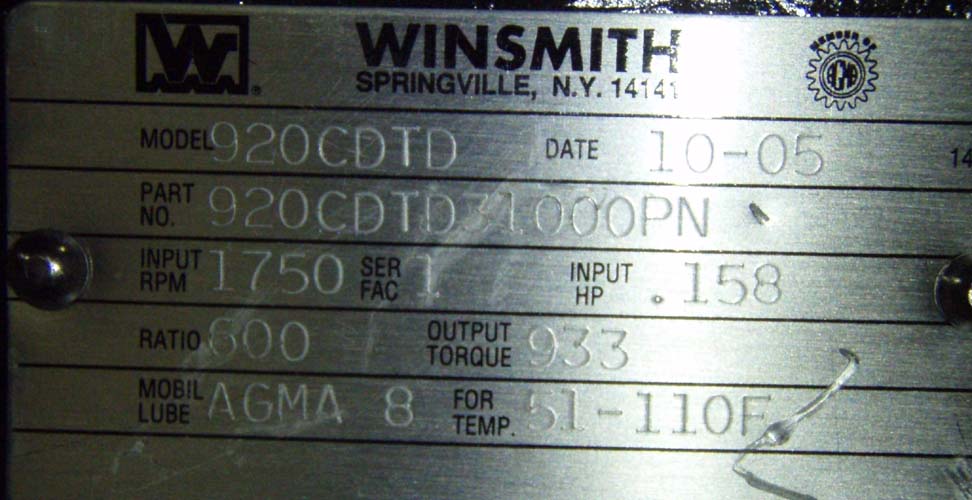

N A M E P L A T E       D A T A
Manufacturer:      WINSMITH WORM GEAR REDUCER Our ID No.      006614
Model:      920CDTD Ratio:      600
S/N      920CDTD31000PN Center Distance      P=1.333
     S=2.000
IP Speed      1750 HP rating       0.158
OP Speed:      2.9 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      933 Lb-Inches Shaft Diameters High Speed:  0.500
 56C Coupling Style
Low Speed:  1.000
Weight       40 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
600:1

2.9 RPM
0.158 HP
1170 RPM
RPM
HP
Notes:
   UNUSED SURPLUS
