- Speed Reducer Data Sheet -

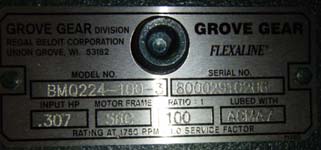

N A M E P L A T E       D A T A
Manufacturer:      GROVE GEAR     Flexaline SERIES Our ID No.      006625
Model No:      BMQ224-100-3 Ratio:      100
S/N      80002910206 Center Distance      2.375
IP Speed      1750 HP rating      0.307
OP Speed:      17.5 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      648 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.125
Weight      50 Lbs Approx. Assembly      WORH
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
100 :1

17.5 RPM
0.307 HP
1170 RPM
11.7 RPM
0.251 HP
870 RPM
8.7 RPM
0.210 HP
Notes:
   Unused Surplus
