Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

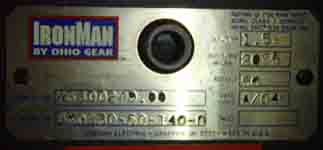

N A M E P L A T E       D A T A
Manufacturer:      OHIO GEAR     IRONMAN Our ID No.      006660
Model No:      BMQ830-50-140-D Ratio:      50
CATALOG NUMBER      W8300249.00 Center Distance      3.00
IP Speed      1750 HP rating      1.58
OP Speed:      35 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      2,085 Lb-Inches Shaft Diameters High Speed:  140TC (56C with a bushing)
Low Speed:  1.250
Weight      86 Lbs Approx. Assembly      Double Output
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
50

35 RPM
1.59 HP
1170 RPM
23 RPM
1.34 HP
870 RPM
17 RPM
1.15 HP
580 RPM
RPM
HP
Notes:
   Unused surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci


Click on images for larger view.
